T1601N35TOF Infineon - Thyristor

T1601N35TOF Description

The Infineon Technologies T1601N35TOF is a thyristor (SCR), rated for 3500 V and 1600 A. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters.

Need the T1601N35TOF? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Infineon T1601N35TOF is used for Typical applications for the T1601N series include power supplies, battery chargers, motor control, induction heaters, welders, and platers.

Key Specifications

T1601N35TOF is a 3,500 V, 1601 A phase control thyristor (disc). Source: manufacturer datasheet.

Parameter	Value
Product type	Phase control thyristor (disc)
Repetitive peak voltage (VDRM / VRRM)	3,500 V
Rated on-state current	1601 A

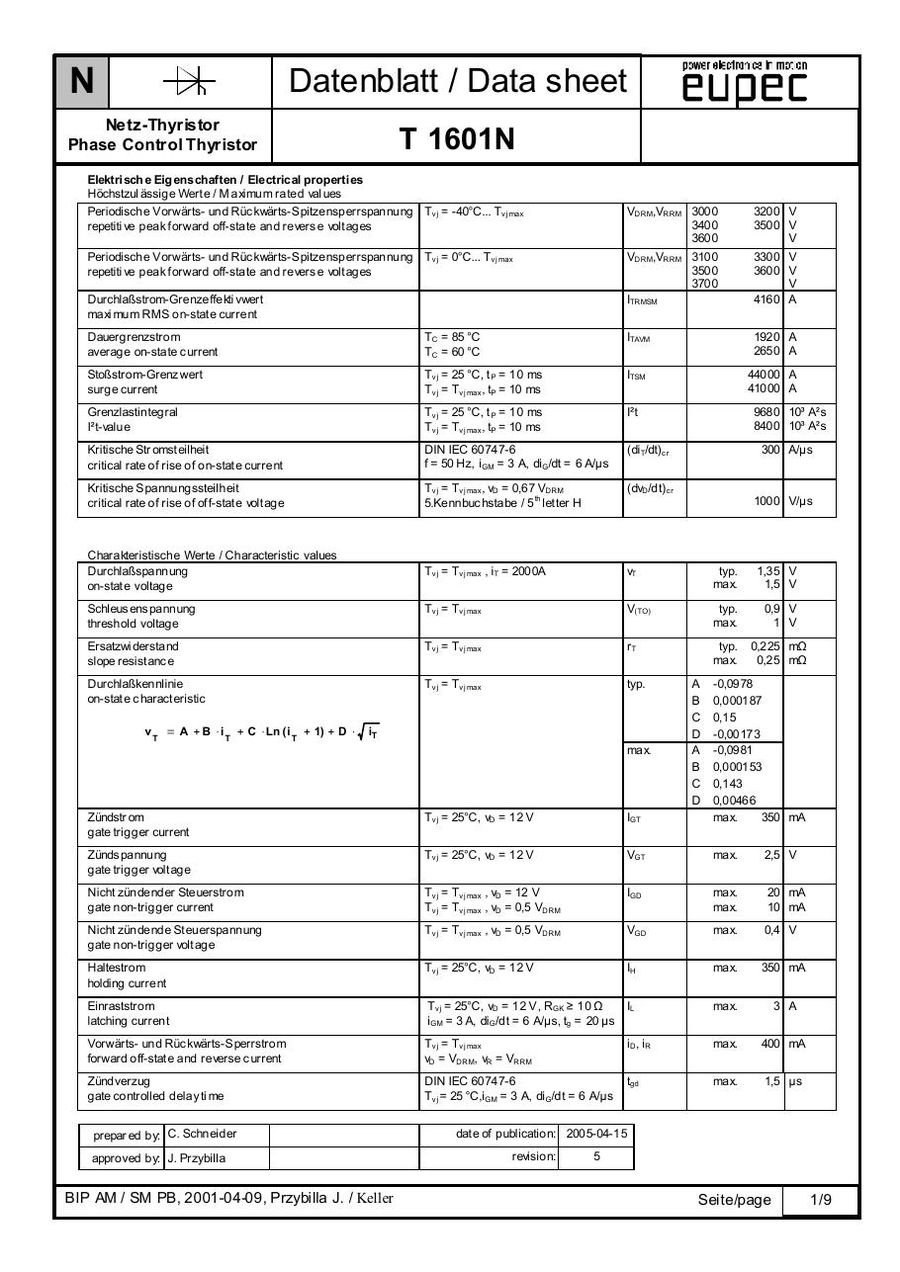

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for T1601N35TOF (reply within 24 hours)
