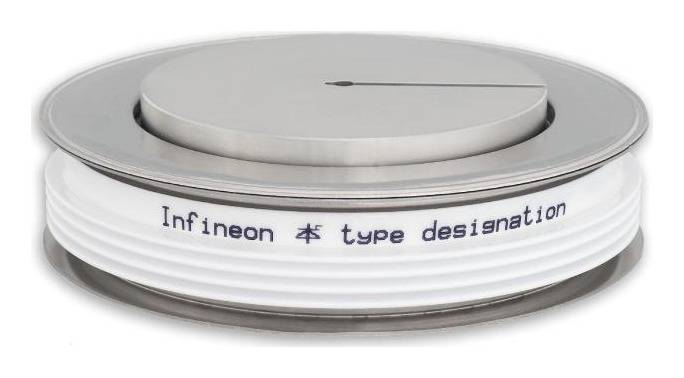

T1503N80TOH_PR Infineon - Phase Control SCR

T1503N80TOH_PR Description

T1503N80TOH_PR is a 8000 V, 1770 A Infineon light-triggered thyristor (disc) (light-triggered thyristor), used for hVDC transmission, static VAR compensation, rectifiers for drives, load-commutated inverters, crowbars.

USComponent supplies T1503N80TOH_PR and other Infineon / Eupec power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon T1503N80TOH_PR is used for high voltage direct current transmission HVDC, static var compensation SVC, rectifier for drives applications, load commutating inverter and crowbar applications.

Key Specifications

T1503N80TOH_PR is a 8,000 V, 1,770 A Infineon light-triggered thyristor (disc). Source: manufacturer datasheet.

Parameter	Value
Product type	Light-triggered thyristor (disc)
Configuration	Light-triggered thyristor
Repetitive peak reverse voltage (VRRM)	8,000 V
Average on-state current (ITAVM, TC 85 °C)	1,770 A
Technology	Direct light-triggered thyristor with integrated break-over diode
Package	Disc, 151.5 mm max. diameter

Technical document (PDF)  |  Request a quote for T1503N80TOH_PR (reply within 24 hours)
