FZ200R65KF1 Infineon - IGBT Module

FZ200R65KF1 Description

The Infineon Technologies FZ200R65KF1 is an IGBT module, rated for 6300 V. It is built with a single switch with its freewheeling diode (1-in-1). You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the FZ200R65KF1, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Infineon FZ200R65KF1 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FZ200R65KF1 is a 6,500 V, 200 A IGBT module, single switch configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single switch
Collector-emitter voltage (VCES)	6,500 V
Collector current (IC)	200 A

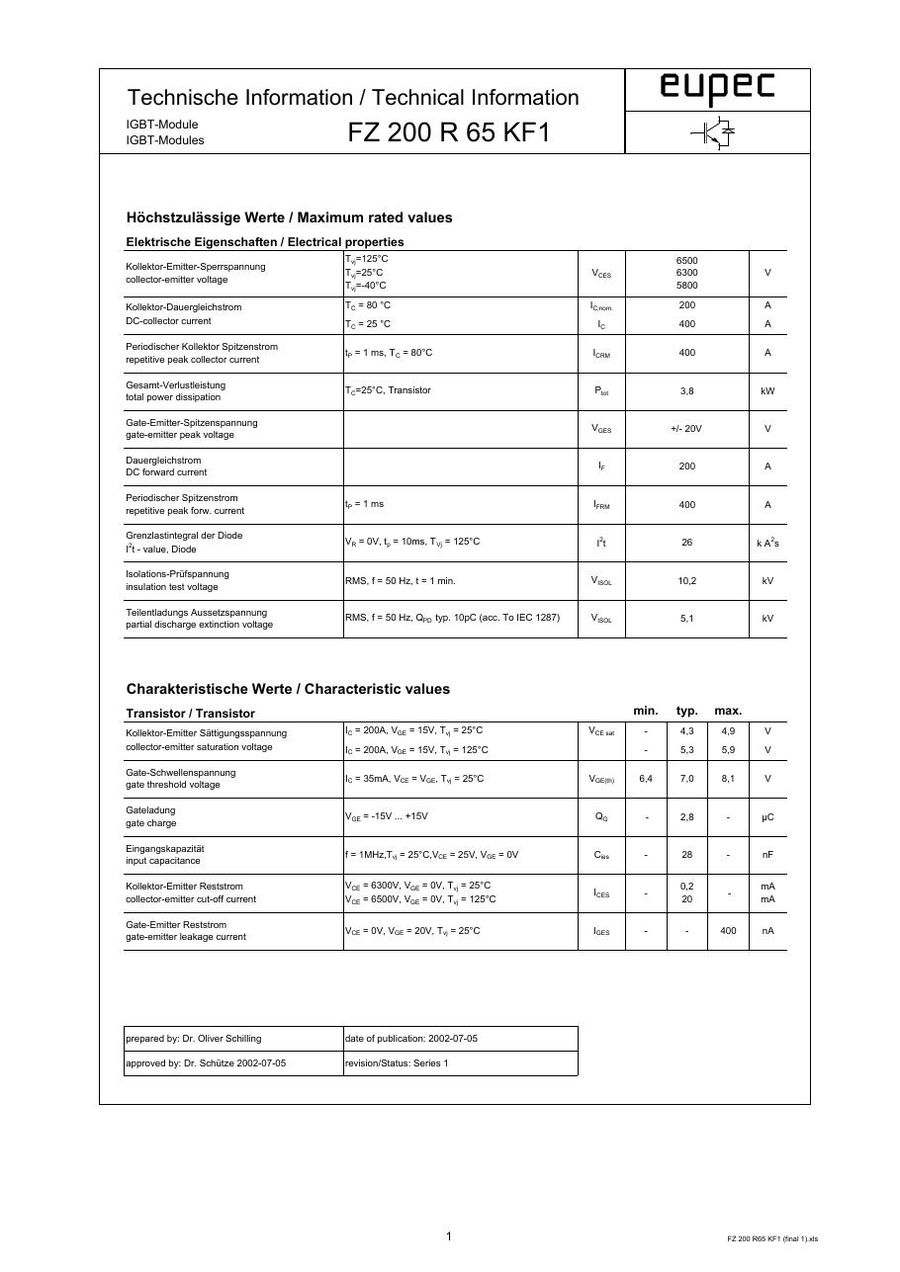

Datasheet	Available on this page (PDF)

FZ200R65KF1 Video

Technical document (PDF)  |  Request a quote for FZ200R65KF1 (reply within 24 hours)
