FZ1800R17KE3_B2 Infineon - IGBT Module

FZ1800R17KE3_B2 Description

FZ1800R17KE3_B2 is an Infineon (eupec) 1,700 V / 1,800 A single-switch IGBT module, IHM 190 mm, AlSiC base plate.

USComponent supplies FZ1800R17KE3_B2 and other Infineon / eupec power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FZ1800R17KE3_B2 is used for Traction, wind converters, medium-voltage drives, high-power converters.

Key Specifications

FZ1800R17KE3_B2 is an Infineon (eupec) 1,700 V / 1,800 A single-switch IGBT module, IHM 190 mm. Key data from the Infineon (eupec) datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single-switch IGBT module
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC nom)	1,800 A (TC = 80 °C); 2,850 A at TC = 25 °C
Repetitive peak collector current (ICRM)	3,600 A
Total power dissipation (Ptot)	12.5 kW
VCE(sat) typ. at 1,800 A	2.00 V (25 °C) / 2.40 V (125 °C)
Technology	IGBT3 (KE3)

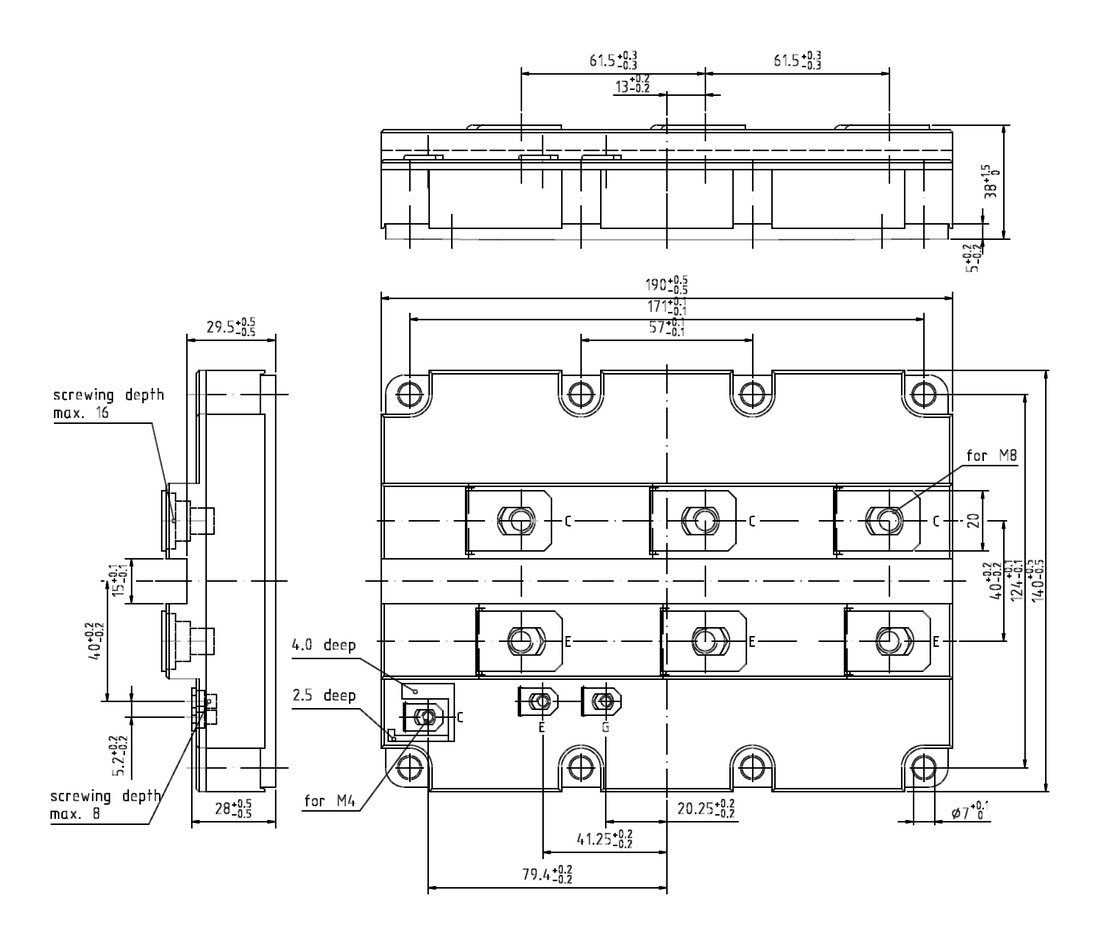

Package	IHM 190 x 140 mm (A-IHM190-1-1)
Base plate / substrate	AlSiC base plate, AlN substrate
Isolation test voltage	4.0 kV RMS, 1 min
Weight	1,500 g

Status: discontinued by Infineon (Product Discontinuation PD_121_16, last order date 2018-03-31). Infineon recommended replacement: FZ1800R17HP4_B29 (Infineon notes it is mechanically not fully compatible). Infineon advises checking the datasheet limits and gate drive conditions before using the replacement. USComponent can still source the original FZ1800R17KE3_B2 as well as the replacement.

Technical document (PDF)  |  Request a quote for FZ1800R17KE3_B2 (reply within 24 hours)
