FS100R12KT4GP Description

FS100R12KT4GP is an Infineon 1,200 V / 100 A sixpack, EconoPACK 3.

USComponent supplies FS100R12KT4GP and other Infineon / eupec power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FS100R12KT4GP is used for Motor drives, servo drives, UPS, inverters.

Key Specifications

FS100R12KT4GP is an Infineon (eupec) 1,200 V / 100 A sixpack, EconoPACK 3. Key data from the Infineon type designation and Product Discontinuation notice.

Parameter	Value
Product type	IGBT module
Configuration	Sixpack (six-pack) IGBT module
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC nom)	100 A
Technology	fast IGBT4 (T4), pre-applied thermal interface material (P)
Package	EconoPACK 3 (AG-ECONO3-4)

Status: discontinued by Infineon (Product Discontinuation PD_122_18, last order date 2019-01-15). Infineon recommended replacement: FS100R12KT4G. Check the datasheet limits before replacing. USComponent can still source the original FS100R12KT4GP.

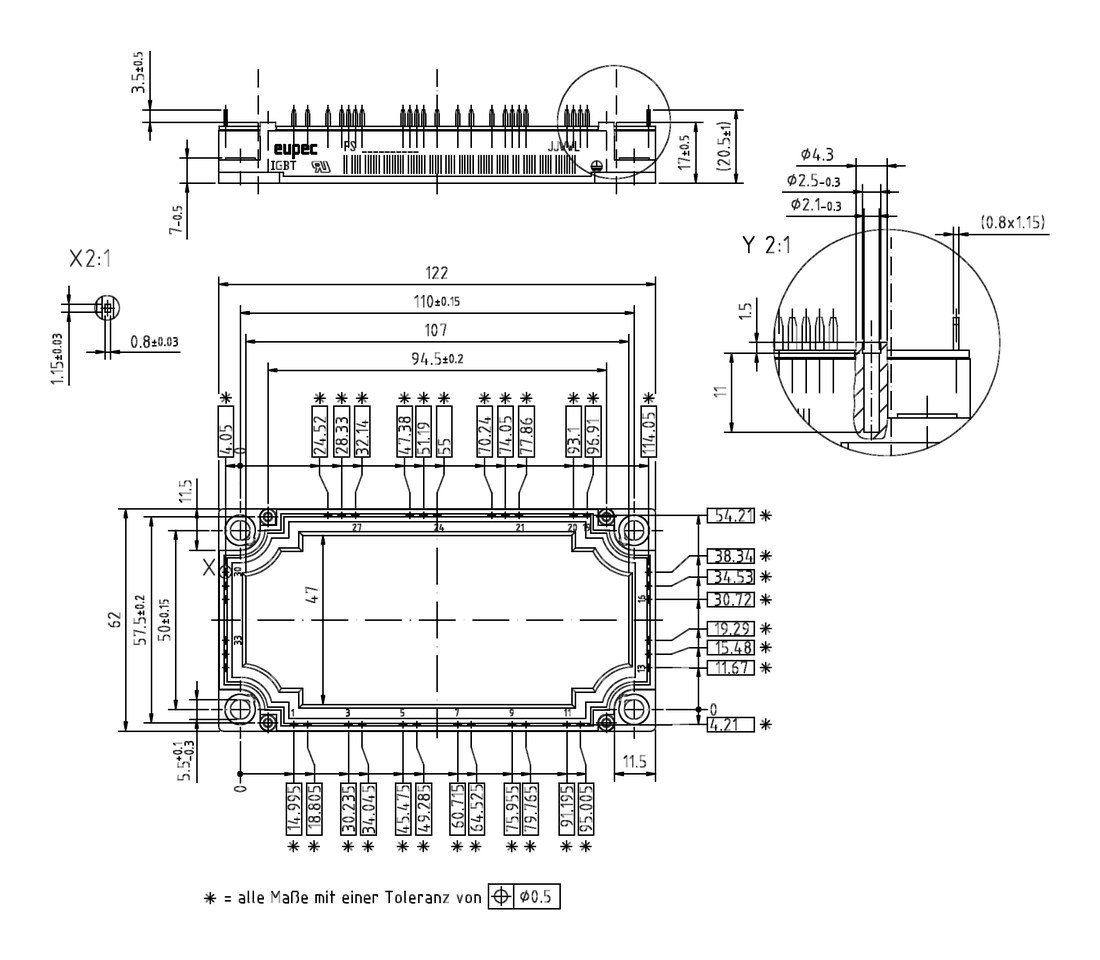

Note: FS100R12KT4GP is the version of FS100R12KT4G with pre-applied thermal interface material (P = pre-applied TIM). The datasheet and picture on this page are those of FS100R12KT4G (same module).
