FF800R12KF4 Infineon - IGBT

FF800R12KF4 Description

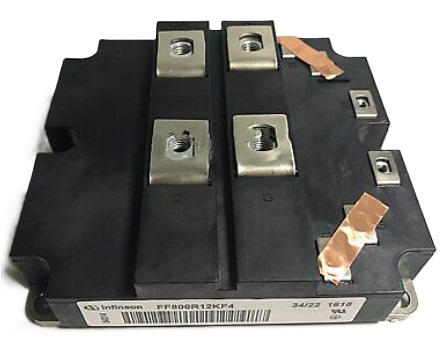

The Infineon Technologies FF800R12KF4 is an IGBT module, rated for 1200 V and 800 A. The module contains two switches in a half-bridge (2-in-1) arrangement. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the FF800R12KF4, and please confirm ratings against the datasheet before ordering.

Target Applications

Infineon FF800R12KF4 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Dual - two IGBTs (half-bridge) with diodes
VCES	1200 V
IC	800 A (DC)
ICRM	1600 A (tp = 1 ms)
Isolation test voltage	2.5 kV RMS, 50 Hz, 1 min
Mounting torque	M6: 3 Nm (±15%)
Terminal torque	M4: 2 Nm; M8: 8 - 10 Nm

FF800R12KF4 Video

Technical document (PDF)  |  Request a quote for FF800R12KF4 (reply within 24 hours)
