FF600R17KE3_B2_S1 Infineon - IGBT Module

FF600R17KE3_B2_S1 Description

FF600R17KE3_B2_S1 is a 1700 V, 600 A IGBT module made by Infineon. The module contains two switches in a half-bridge (2-in-1) arrangement. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the FF600R17KE3_B2_S1 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

FF600R17KE3_B2_S1 is a 1700V 600A IGBT Module.

Target Applications

Infineon FF600R17KE3_B2_S1 is used for Drives, Wind, Traction and CAV.

Key Specifications

FF600R17KE3_B2_S1 is a 1,700 V, 600 A IGBT module, dual (half bridge) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (half bridge)
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC)	600 A
Datasheet	Available on this page (PDF)

Replacement for discontinued parts: Infineon recommends FF600R17KE3_B2_S1 as the replacement for FF600R17KE3_B2_S1_S1 (Product Discontinuation PD_099_15). Check the datasheet limits and gate drive conditions when replacing.

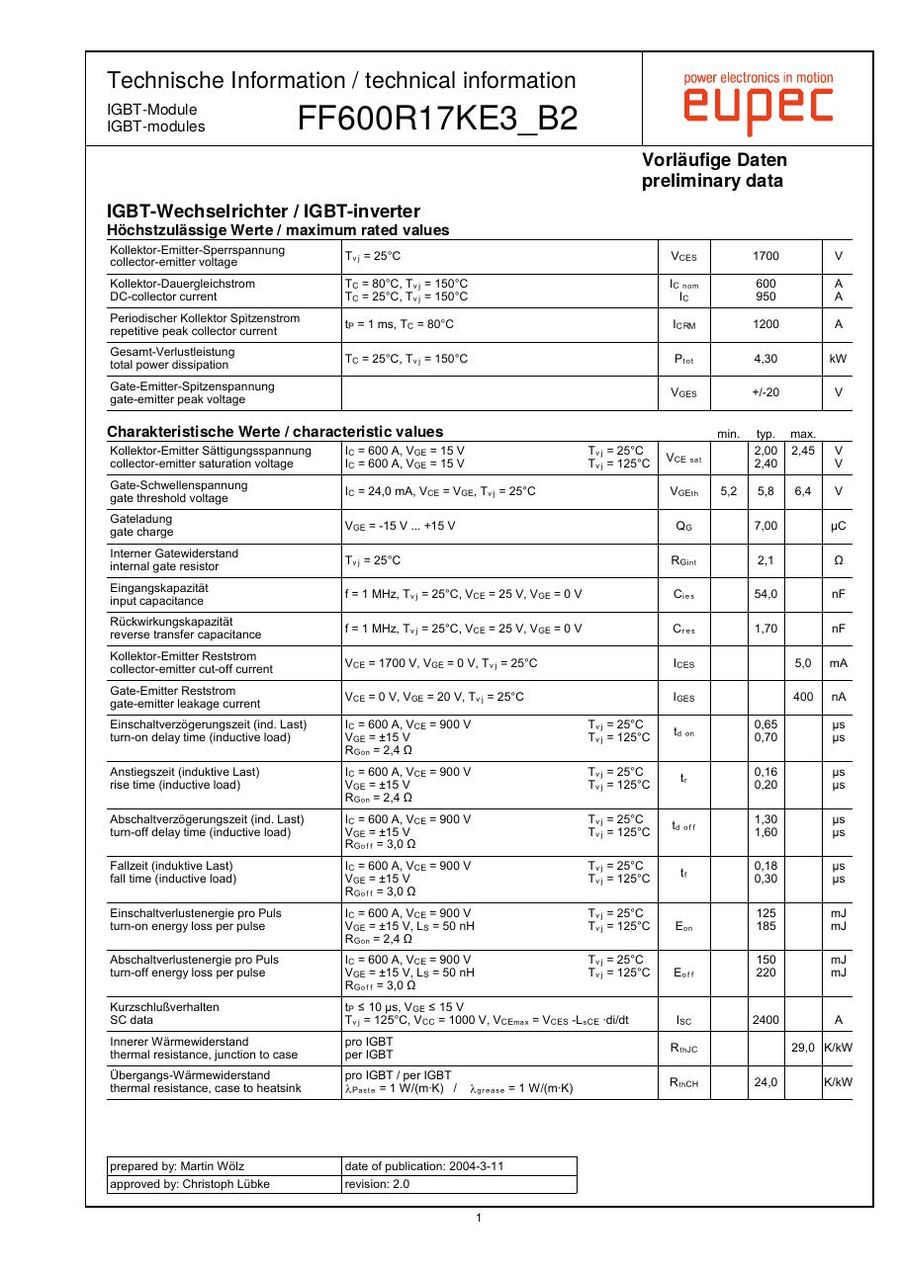

Note: the S1 version is the same module as the standard FF600R17KE3_B2, tested with a Siemens-specific grouping (Infineon). The datasheet on this page is the FF600R17KE3_B2 datasheet.

Status: discontinued by Infineon (Product Discontinuation PD_099_15, last order date 2017-03-31). Infineon recommended replacement: FF600R17KE3_B2. Infineon notes that a replacement is not always a one-to-one drop-in: check the datasheet limits and gate drive conditions. USComponent can still source the original FF600R17KE3_B2_S1.

Technical document (PDF)  |  Request a quote for FF600R17KE3_B2_S1 (reply within 24 hours)
