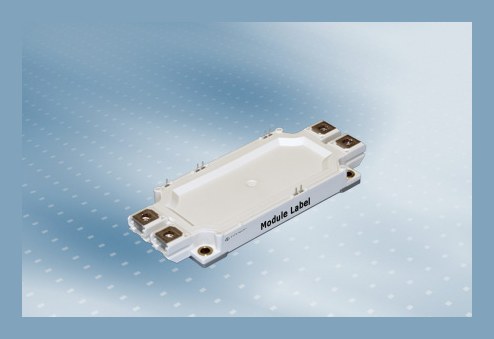

FF300R12ME4P_B11 Infineon - IGBT Module

FF300R12ME4P_B11 Description

FF300R12ME4P_B11 is a 1200 V, 300 A Infineon EconoDUAL 3 dual IGBT module (IGBT4), used for motor drives, servo drives, UPS systems and wind turbines.

USComponent supplies FF300R12ME4P_B11 and other Infineon IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FF300R12ME4P_B11 is used for motor drives, servo drives, UPS systems and wind turbines.

Key Specifications

FF300R12ME4P_B11 is a 1,200 V, 300 A Infineon EconoDUAL 3 IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (half-bridge)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC nom)	300 A
Technology	Trench/Fieldstop IGBT4 with Emitter Controlled HE diode
Package	EconoDUAL 3
Max. operating junction temperature	150 °C

Technical document (PDF)  |  Request a quote for FF300R12ME4P_B11 (reply within 24 hours)
