FC560R12D3H7F_B78 Infineon - IGBT Module

Also written as: FC560R12D3H7F-B78

Category: IGBT Modules

Specifications: 1200V, 280A

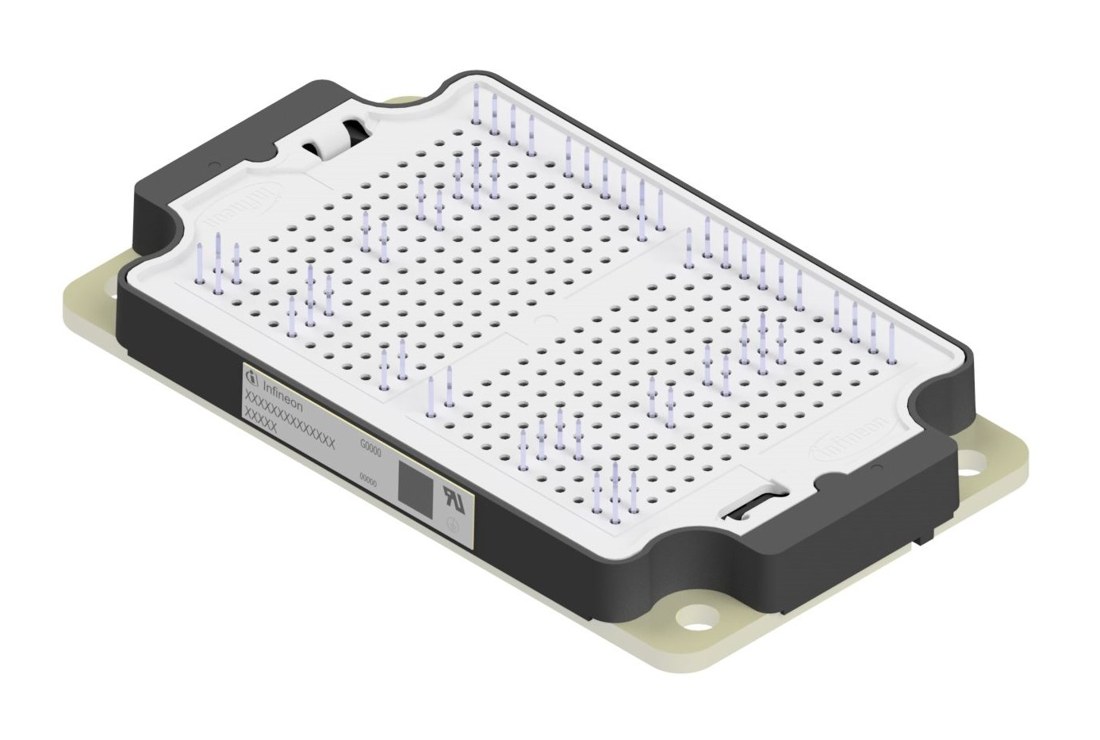

FC560R12D3H7F_B78 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FC560R12D3H7F_B78 Description

FC560R12D3H7F_B78 is a 1200 V / 280 A IGBT module from Infineon Technologies. Typical applications: solar applications.

USComponent supplies FC560R12D3H7F_B78 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Low switching losses
  • TRENCHSTOP IGBT7
  • Compact design
  • Integrated NTC temperature sensor
  • High power density

Target Applications

Infineon FC560R12D3H7F_B78 is used for Solar applications.

Key Specifications

FC560R12D3H7F_B78 is a 1200 V / 280 A IGBT module from Infineon Technologies (EasyPACK HD3 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)280 A
PackageEasyPACK HD3
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FC560R12D3H7F_B78 (reply within 24 hours)
