DZ600N16K Infineon - DC-DC Converter
Replacement for: Infineon recommends DZ600N16K as the replacement for DZ600N14K, ND260N12K, ND350N12K, ND350N16K. We also supply the original parts.
DZ600N16K Description
Infineon Technologies makes the DZ600N16K, a power supply. It is used in input rectifiers, freewheeling and clamping circuits, battery chargers and welding power sources. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.
USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the DZ600N16K, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.
Target Applications
Infineon DZ600N16K is used for isolated, regulated DC power in telecom and datacom systems, industrial controls, test and measurement, railway and transportation equipment.
Key Specifications

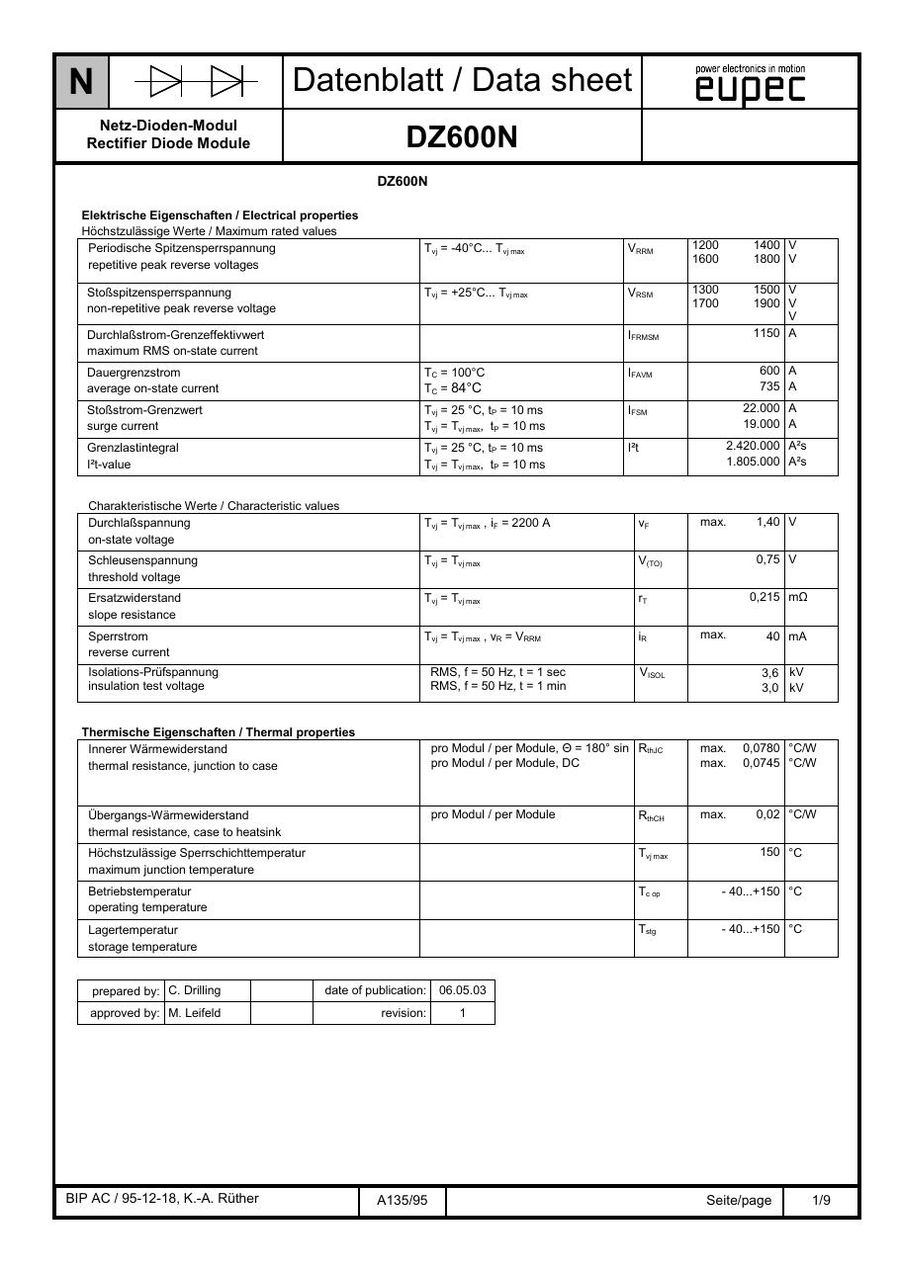

DZ600N16K is an eupec (Infineon) PowerBLOCK diode module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).
| Parameter | Value |
|---|---|
| Manufacturer | eupec (Infineon Technologies) |
| Product type | PowerBLOCK diode module |
| Repetitive peak reverse voltage (VRRM) | 1600 V (series 1200 to 1800 V) |
| Average forward current (IFAVM), 180° el sin | 600 A at Tc = 100 °C |
| RMS current (IFRMSM) | 1150 A |
| Surge current (IFSM), 10 ms, Tvj max | 19000 A |
| I²t, 10 ms, Tvj max | 1805 × 10³ A²s |
| Threshold voltage V(T0) | 0.75 V |
| Slope resistance rT | 0.215 mΩ |
| Thermal resistance RthJC | 0.078 °C/W |
| Thermal resistance RthCK | 0.02 °C/W |
| Max. junction temperature Tvj max | 150 °C |
| Package (outline) | DP50.1 |
Technical document (PDF) | Request a quote for DZ600N16K (reply within 24 hours)
Related Part Numbers
| DZ540N16K 1600V, 540A | DZ600N18K 600A/1800V | DZ600N14K 1400V, 600A | DZ700N16K 1600V, 700A |
| DZ600N12K 1200V, 600A | DZ600N22K 2200V, 600A | DZ600N08K 800V | DZ600N06K 600V, 600A |
| DZ600N16KB01 1600V | DZ600N16 1600V, 600A | DZ600N16KHPSA1 1600V, 600A | DZ600N18 1800V, 600A |
| DZ600N14 1400V, 600A | DZ600N12 1200V, 600A | DZ600N04K 400V, 600A | DZ600N02K 200V, 600A |
