DDB6U84N16RRInfineon - IGBT MODULE

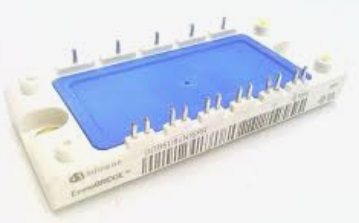

DDB6U84N16RR Description

The Infineon Technologies DDB6U84N16RR is an IGBT module rated at 1200 V and 50 A. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the DDB6U84N16RR.

Target Applications

Infineon DDB6U84N16RR is used for AMotoControlMotion/ServControlUPSWeldinPoweSuppliesLasePoweSupplies.

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Three-phase rectifier bridge with chopper IGBT and fast diode
Rectifier VRRM	1600 V
Rectifier output current	104 A (TC = 84 °C)
Rectifier IFSM	650 A (10 ms)
Chopper IGBT VCES / IC	1200 V / 50 A (ICRM 100 A)
Isolation test voltage	2.5 kV RMS (1 min)
Mounting torque	4 Nm (±15%)
Weight	185 g
