DD98N22K Infineon - Diode Module

DD98N22K Description

DD98N22K is a rectifier diode module, dual diode (DD98N) from Infineon (eupec / IFBIP), rated 2200V, 98A. Typical applications: Rectifier for drives applications, rectifiers for UPS and battery chargers.

USComponent supplies DD98N22K and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon DD98N22K is used for Rectifier for drives applications, rectifiers for UPS and battery chargers.

Key Specifications

DD98N22K is a rectifier diode module, dual diode (DD98N) from Infineon (eupec / IFBIP), rated 2200V, 98A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Infineon (eupec / IFBIP)
Repetitive peak reverse voltage VRRM	2200 V
Non-repetitive peak reverse voltage VRSM	2300 V
Average forward current IFAVM	98 A (TC = 100 °C)
Max. RMS current IFRMSM	160 A
Surge current IFSM (10 ms, 25 °C / Tvj max)	2400 A / 2000 A
I²t (10 ms, 25 °C)	28 800 A²s
Forward voltage vF max. (300 A, Tvj max)	1.53 V
Threshold voltage V(TO) / slope resistance rT	0.82 V / 2 mΩ
Insulation test voltage	3.0 kV (1 s) / 2.5 kV (1 min)
Base plate / weight	20 mm / 160 g
Datasheet	Available on this page (PDF)

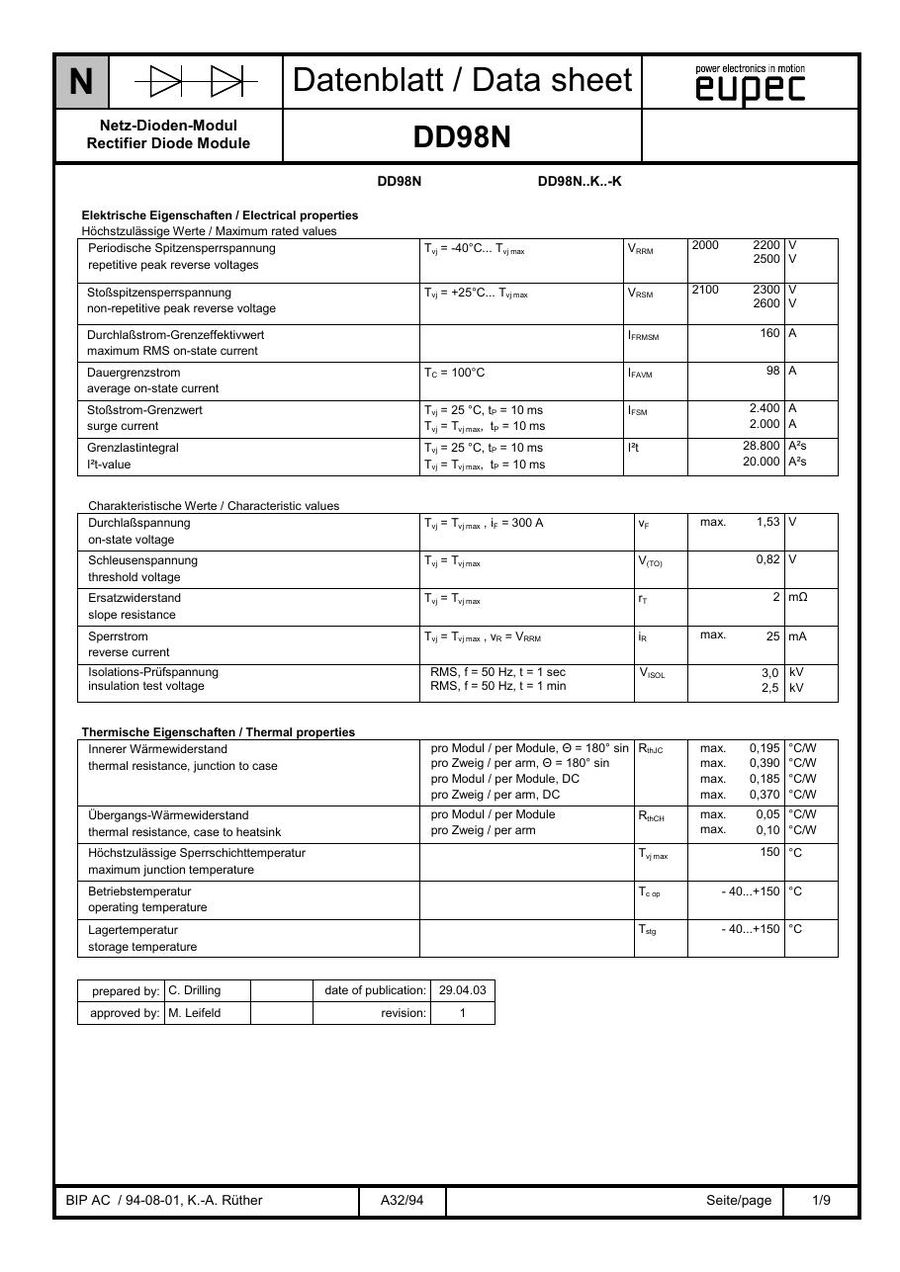

Note: data taken from the Infineon (eupec / IFBIP) datasheet of DD98N series (2000 - 2500 V), which covers DD98N22K.
