DD800S45KL3_B5 Infineon - Diode Module

Also written as: DD800S45KL3-B5

Category: Diode & Rectifier Modules

Specifications: 4500V, 800A

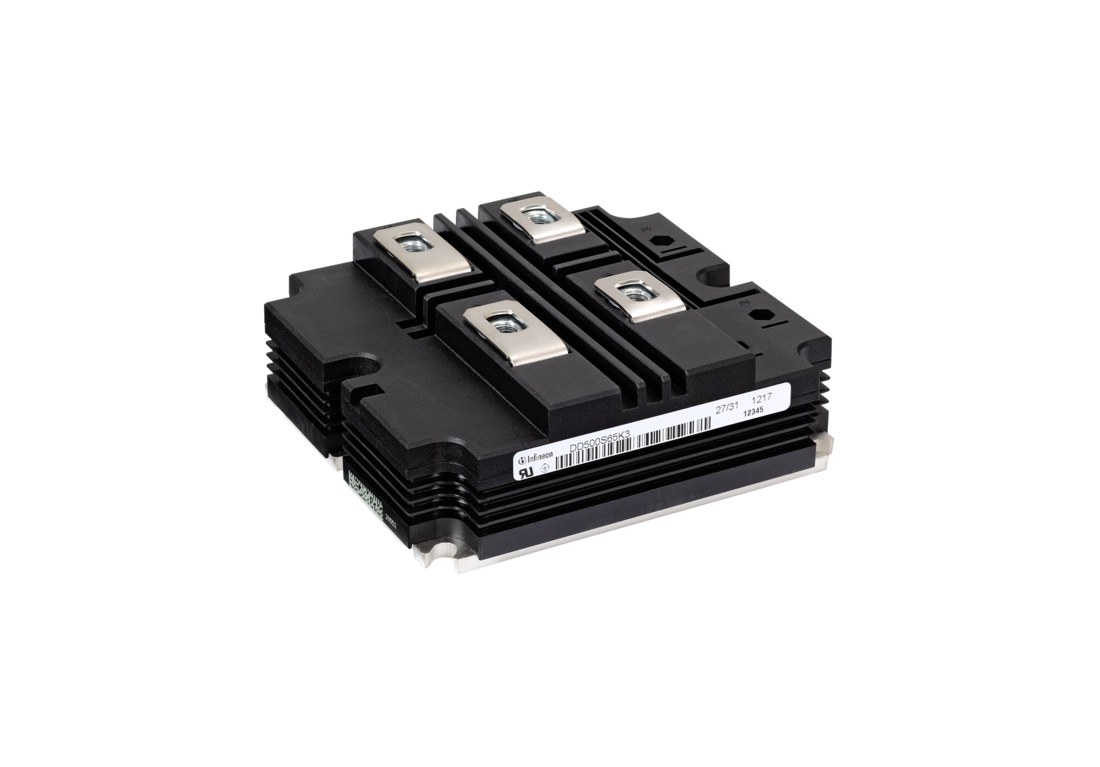

DD800S45KL3_B5 Infineon Diode Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DD800S45KL3_B5 Description

DD800S45KL3_B5 is a 4500 V / 800 A dual diode diode module from Infineon Technologies. Typical applications: motor drives, Multi-level inverter, Traction drives, Wind turbines, Medium-voltage converters, High-power converters.

USComponent supplies DD800S45KL3_B5 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • High DC stability
  • High dynamic robustness
  • High surge current capability
  • Package with enhanced insulation of 10.4 kV AC 60 s
  • Package with CTI > 600
  • High creepage and clearance distances

Target Applications

Infineon DD800S45KL3_B5 is used for Motor drives, Multi-level inverter, Traction drives, Wind turbines, Medium-voltage converters, High-power converters.

Key Specifications

DD800S45KL3_B5 is a 4500 V / 800 A dual diode diode module from Infineon Technologies. Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeDiode Module
ConfigurationDual diode
Collector-emitter voltage (VCES)4500 V
Nominal collector current (IC nom)800 A
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for DD800S45KL3_B5 (reply within 24 hours)
