DD350N14 Infineon - BRIDGE RECTIFIER
DD350N14 Description
The DD350N14 from Infineon Technologies (formerly Eupec) is a rectifier bridge with a 1400 V / 350 A rating. It is used in input rectifiers, freewheeling and clamping circuits, battery chargers and welding power sources. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.
Request a quote for the DD350N14 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.
Target Applications
Infineon DD350N14 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.
Key Specifications

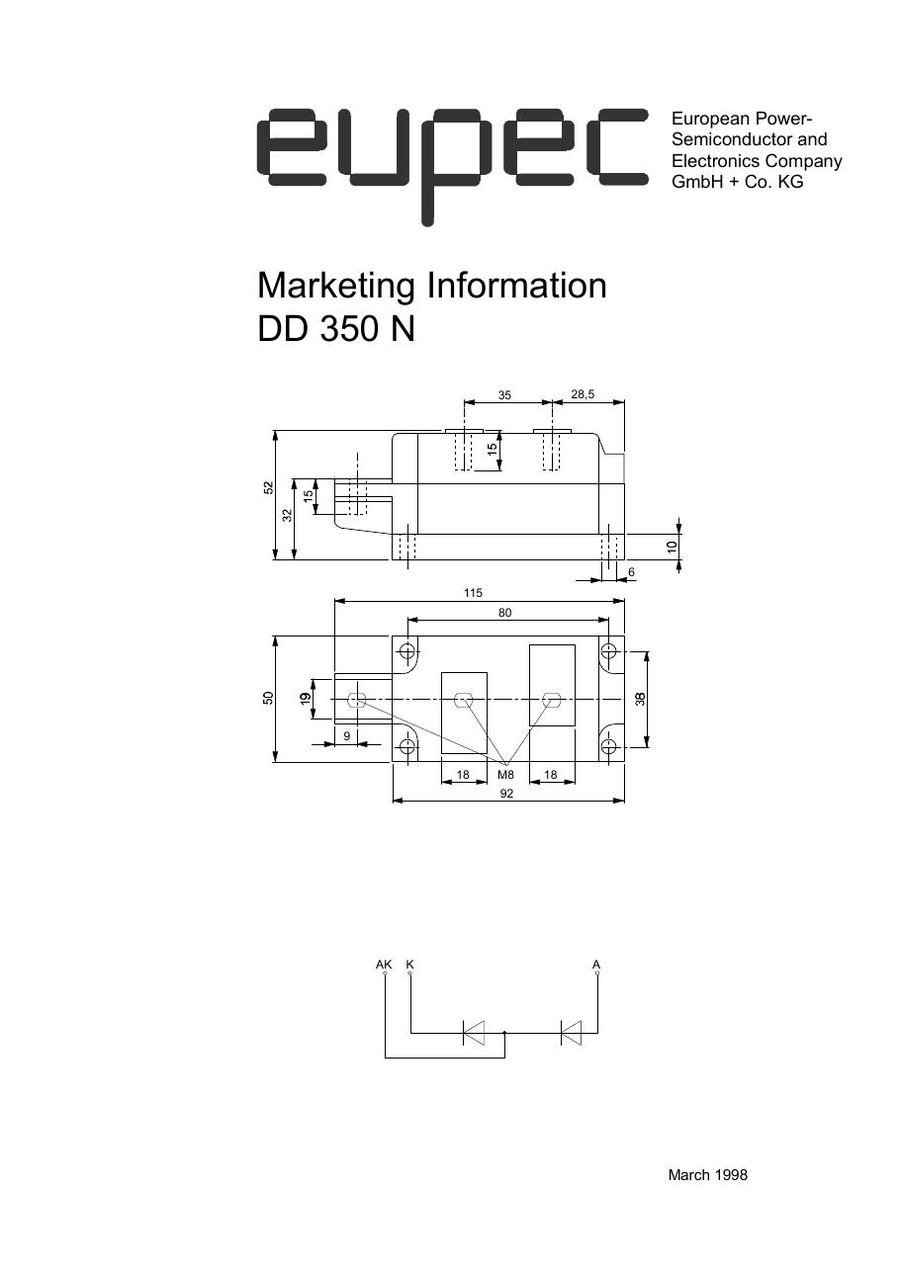

DD350N14 is an eupec (Infineon) PowerBLOCK diode module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).
| Parameter | Value |
|---|---|
| Manufacturer | eupec (Infineon Technologies) |
| Product type | PowerBLOCK diode module |
| Repetitive peak reverse voltage (VRRM) | 1400 V (series 1000 to 1800 V) |
| Average forward current (IFAVM), 180° el sin | 350 A at Tc = 100 °C |
| RMS current (IFRMSM) | 550 A |
| Surge current (IFSM), 10 ms, Tvj max | 11000 A |
| I²t, 10 ms, Tvj max | 605 × 10³ A²s |
| Threshold voltage V(T0) | 0.75 V |
| Slope resistance rT | 0.4 mΩ |
| Thermal resistance RthJC | 0.13 °C/W |
| Thermal resistance RthCK | 0.04 °C/W |
| Max. junction temperature Tvj max | 150 °C |
| Package (outline) | DP50 |
Technical document (PDF) | Request a quote for DD350N14 (reply within 24 hours)
Related Part Numbers
| DD350N16 1600V, 350A | DD350N12 1200V, 350A | DD285N14 1400V, 285A | DD350N18 1800V, 350A |
| DD260N14 1400V, 260A | DD600N14 1400V, 600A | DD171N14 1400V, 170A | DD151N14 1400V, 151A |
| DD350N14K 1400(V) / 350(A) | DD350N12K-K 1200V | DD350N12K 1200V, 350A | DD350N16K 1600V, 350A |
| DD350N08K 800V | DD350N18K 350A/1800V | DD350N06K 600V, 350A | DD350N04K 400V, 350A |
