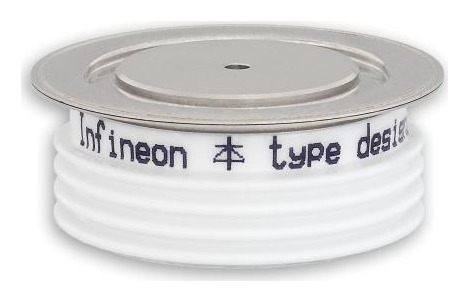

D471N90T Infineon - RECTIFIER DIODE
D471N90T Description
D471N90T is a 9000 V, 550 A Infineon rectifier diode (disc) (single diode), used for rectifiers for drives, medium-voltage converters, pulsed power.
USComponent supplies D471N90T and other Infineon / Eupec power semiconductors. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Full blocking capability 50/60Hz over a wide temperature range
- High DC blocking stability
- High surge current capability
- Hermeticaly sealed ceramic package
- High case non-rupture current
Target Applications
Infineon D471N90T is used for rectifier for drives applications, medium voltage converters and pulsed power applications.
Key Specifications
D471N90T is a 9,000 V, 550 A Infineon rectifier diode (disc). Source: manufacturer datasheet.
| Parameter | Value |
|---|---|
| Product type | Rectifier diode (disc) |
| Configuration | Single diode |
| Repetitive peak reverse voltage (VRRM) | 9,000 V |
| Average forward current (IFAVM, TC 100 °C) | 550 A |
| Technology | Rectifier diode |
| Package | Disc, 58.5 mm max. diameter, 26.9 mm height |
Technical document (PDF) | Request a quote for D471N90T (reply within 24 hours)
Related Part Numbers
| D471N80T 8000V, 565A | D2601N90T 9000V, 2240A | D448N07T 700V, 448A | D448N02T 200V, 448A |
| D660N18T 1800V, 660A | D660N22T 2200V, 660A | D798N14T 1400V, 798A | D798N18T 1800V, 800A |
| D4808 480(V) / 8(A) | D4808C 480(V) / 8(A) | D4578 | D4812 480(V) / 12(A) |
| D48125 480(V) / 125(A) | D4825 | D4457N04T 400V, 4460A | D4825-10 480(V) / 25(A) |
