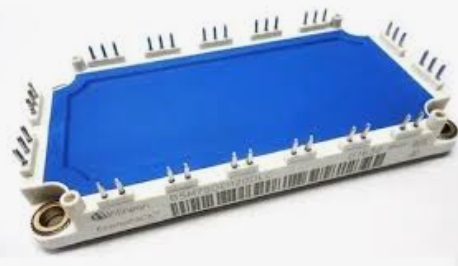

BSM75GD120DLC Infineon - IGBT

BSM75GD120DLC Description

The Infineon Technologies BSM75GD120DLC is an IGBT module, rated for 1200 V and 75 A. Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the BSM75GD120DLC and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

BSM75GD120DLC is a 1200V 75A IGBT Module.

Target Applications

Infineon BSM75GD120DLC is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Three-phase full bridge (six-pack) IGBT module
Package	EconoPACK 3
Technology	Low-loss IGBT2 (DLC)
VCES	1200 V
IC	75 A (TC = 80 °C) / 125 A (TC = 25 °C)
ICRM	150 A (tp = 1 ms)
Isolation test voltage	2.5 kV RMS, 50 Hz, 1 min
Mounting torque	M5: 3 - 6 Nm
Weight	300 g
