BSM100GD120DLC Infineon - IGBT

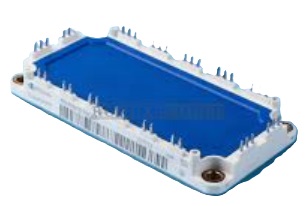

BSM100GD120DLC Description

Infineon Technologies makes the BSM100GD120DLC, a 1200 V, 100 A IGBT module. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

We help engineers and repair technicians find parts like the BSM100GD120DLC, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

BSM100GD120DLC is a 1200V 100A IGBT Module.

Target Applications

Infineon BSM100GD120DLC is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Three-phase full bridge (six-pack) IGBT module
Package	EconoPACK 3
Technology	Low-loss IGBT2 (DLC)
VCES	1200 V
IC	100 A (TC = 80 °C) / 160 A (TC = 25 °C)
ICRM	200 A (tp = 1 ms)
Isolation test voltage	2.5 kV RMS, 50 Hz, 1 min
Mounting torque	M5: 3 - 6 Nm
Weight	300 g
