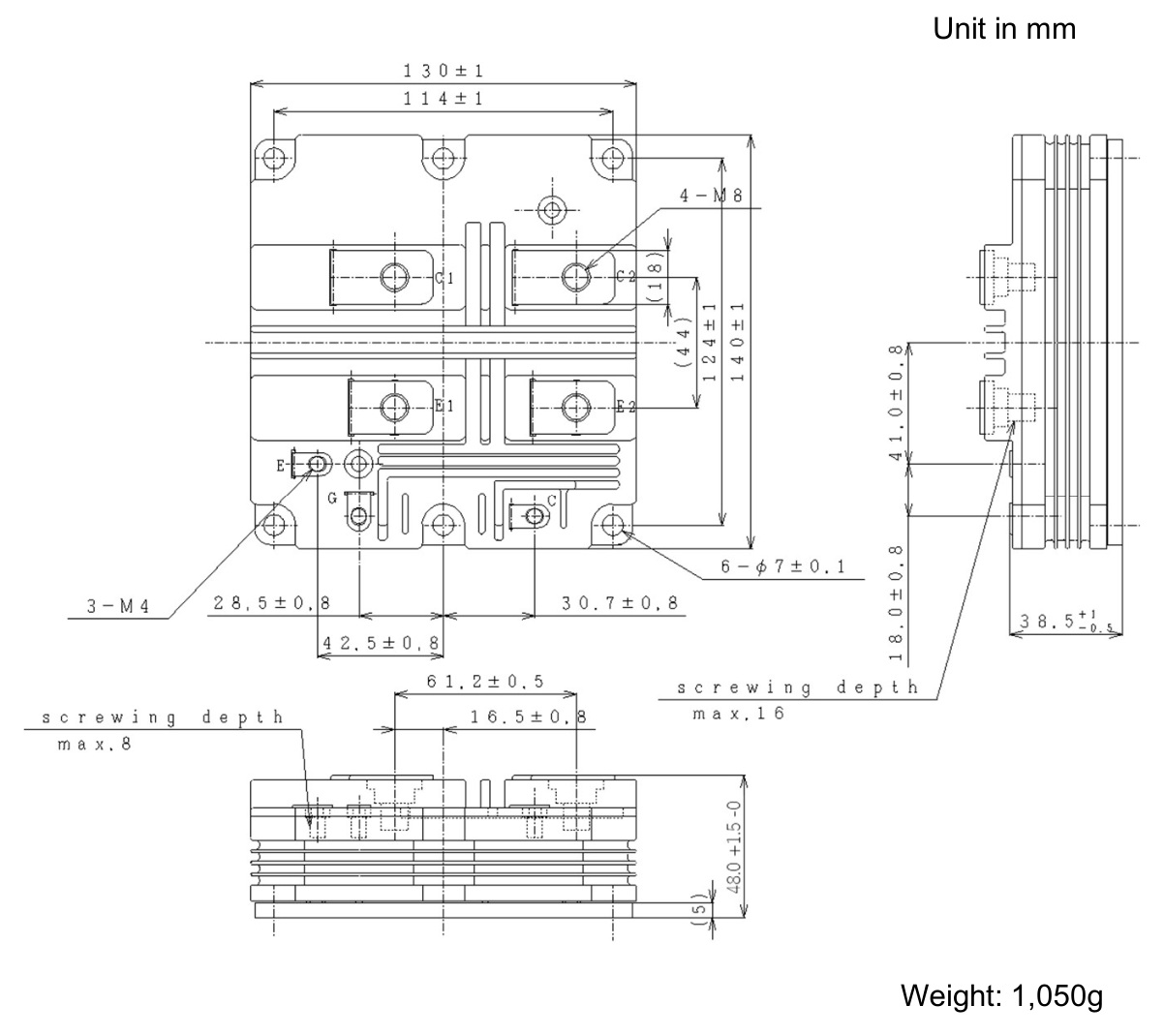

MBN800H45E2 Hitachi - IGBT Module

MBN800H45E2 Description

MBN800H45E2 is a 4,500 V / 800 A single igbt module in the MBN / MBM / MBL family from Hitachi Power Semiconductor Device / MinebeaMitsumi. Manufacturer catalog lists this model in mass production. Verify electrical ratings, package, terminals, isolation and exact ordering suffix against the manufacturer datasheet before ordering.

USComponent sources industrial power semiconductor modules including hard-to-find parts. Request a quote for MBN800H45E2 price and availability.

Summary of Features

Target Applications

Hitachi MBN800H45E2 finds applications in various industries and systems where high power switching is required.

Key Specifications

MBN800H45E2 is listed in the official Hitachi Power Semiconductor Device / MinebeaMitsumi power module catalog.

Parameter	Value
Manufacturer	Hitachi Power Semiconductor Device / MinebeaMitsumi
Part number	MBN800H45E2
Series	MBN / MBM / MBL
Device type	Single IGBT module
Rated VCES	4,500 V
Catalog current rating	800 A
Manufacturer catalog status	Mass production
Official source	Manufacturer product lineup

Specifications are from the manufacturer lineup, not a verified complete product-specific datasheet. Confirm pinout, mechanical fit, gate-drive requirements and current ordering status.

Technical document (PDF)  |  Request a quote for MBN800H45E2 (reply within 24 hours)
