EVM31-050AFuji Electric - IGBT power module

EVM31-050A Description

Fuji Electric EVM31-050A is an IGBT module rated at 500 V and 150 A. Darlington Independent Power Module Features: high DC current gain. This type of device is widely used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the EVM31-050A.

Summary of Features

EVM31-050A is a 500V 150A IGBT power module.

Target Applications

Fuji Electric EVM31-050A is used for Pre-drivers, Short circuit protection, Amplifier for driver, Undervoltage protection circuit, Over current protection circuit and IGBT chip over heating protection.

Key Specifications

Manufacturer	Fuji Electric
Configuration	Dual Darlington power transistor module with free-wheeling diodes
Package	Case M203, insulated type
VCBO / VCEO	600 V / 600 V
VCEO(sus)	450 V
IC	150 A (DC)
ICP	300 A (1 ms)
hFE min.	70 @ 150 A
VCE(sat) max.	2.0 V @ 150 A
Isolation voltage	AC 2500 V (1 min)
Mounting torque	M5: 2.5 - 3.0 N·m recommended (3.5 N·m max.)
Terminal torque	3.5 N·m max.
Weight	450 g
Junction temperature	150 °C max.

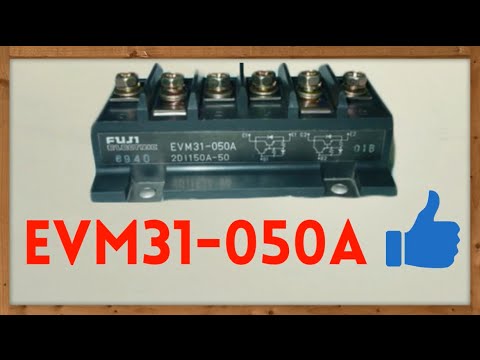

EVM31-050A Video
