A50L-0001-0267Fuji Electric - IGBT Module

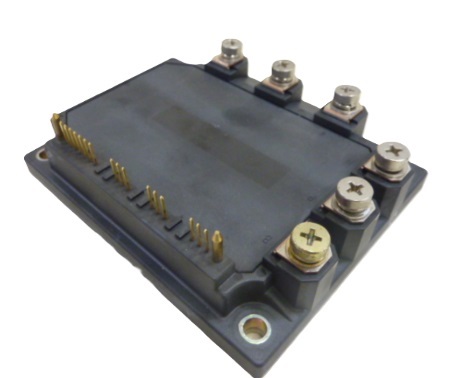

A50L-0001-0267 Description

The Fuji Electric A50L-0001-0267 is an IGBT module rated at 600 V and 75 A. Components of this type are commonly used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the A50L-0001-0267.

Target Applications

Fuji Electric A50L-0001-0267 is used for Inverter for Motor Drive, AC and DC Servo Drive Amplifier, UPS and Industrial machines such as Welding machines.

Key Specifications

Manufacturer	Fuji Electric (Fanuc part number)
Fuji Electric part number	7MBP75RA060-01
Configuration	IGBT-IPM, R-Series, 7-in-1 (three-phase inverter + dynamic brake), IGBT chip Tj over-heating protection
DC bus voltage	450 V (surge 500 V)
VCES	600 V
Inverter IC	75 A DC (ICP 150 A)
Inverter collector power dissipation	320 W
Brake IC	50 A DC (ICP 100 A)
Brake collector power dissipation	198 W
VCE(sat) max.	2.8 V @ 75 A
Isolation voltage	AC 2.5 kV (case-terminal)
Mounting torque	M5: 3.5 N·m max.

A50L-0001-0267 Video

Download A50L-0001-0267 Datasheet

A50L-0001-0267 PDF Datasheet
