A50L-0001-0267 Fuji Electric - IGBT Module

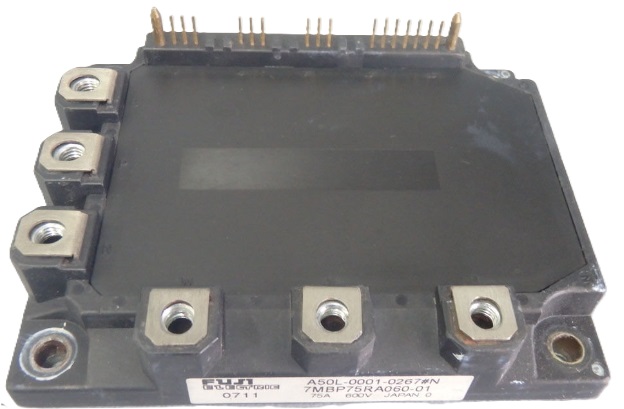

A50L-0001-0267 Description

A50L-0001-0267 is a 600 V, 75 A IGBT module made by Fuji Electric. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

Looking for a replacement A50L-0001-0267? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Target Applications

Fuji Electric A50L-0001-0267 is used for Inverter for Motor Drive, AC and DC Servo Drive Amplifier, UPS and Industrial machines such as Welding machines.

Key Specifications

Manufacturer	Fuji Electric (Fanuc part number)
Fuji Electric part number	7MBP75RA060-01
Configuration	IGBT-IPM, R-Series, 7-in-1 (three-phase inverter + dynamic brake), IGBT chip Tj over-heating protection
DC bus voltage	450 V (surge 500 V)
VCES	600 V
Inverter IC	75 A DC (ICP 150 A)
Inverter collector power dissipation	320 W
Brake IC	50 A DC (ICP 100 A)
Brake collector power dissipation	198 W
VCE(sat) max.	2.8 V @ 75 A
Isolation voltage	AC 2.5 kV (case-terminal)
Mounting torque	M5: 3.5 N·m max.
