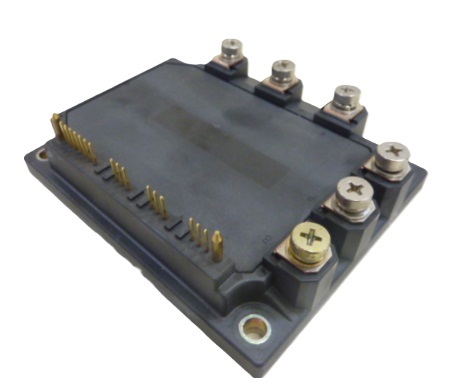

A50L-0001-0266Fuji Electric

A50L-0001-0266 Description

Fuji Electric A50L-0001-0266 is an industrial electronic component rated at 600 V and 50 A. Typical applications for this type of component include industrial automation and control equipment.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the A50L-0001-0266.

Target Applications

Fuji Electric A50L-0001-0266 finds applications in various industries and systems where high power switching is required.

Key Specifications

Manufacturer	Fuji Electric (Fanuc part number)
Fuji Electric part number	7MBP50RA060
Configuration	IGBT-IPM, R-Series, 7-in-1 (three-phase inverter + dynamic brake)
Built-in protection	Over-heating protection by direct junction temperature detection
DC bus voltage	450 V (surge 500 V)
VCES	600 V
Inverter IC	50 A DC (ICP 100 A)
Inverter collector power dissipation	198 W (one transistor)
Brake IC	30 A DC (ICP 60 A)
Brake collector power dissipation	120 W
VCE(sat) max.	2.8 V @ 50 A (inverter); 2.8 V @ 30 A (brake)
Isolation voltage	AC 2.5 kV (case-terminal)
Mounting torque	M5: 3.5 N·m
