A50L-0001-0175 Description

The A50L-0001-0175 from Fuji Electric is a power semiconductor module with a 600 V / 120 A rating. Parts like this are found in drives, power converters and other industrial control systems.

Request a quote for the A50L-0001-0175 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Fuji Electric A50L-0001-0175 is used for General Purpose Inverter, Uninterruptible Power Supply, Servo & Spindle Drive for CNC MACHINE TOOLS, Robotics (Servo Drive for Robots) and Switching Power Supplies for Welding Machines.

Key Specifications

Manufacturer	Fuji Electric (Fanuc part number)
Fuji Electric part number	6DI100A-050
Configuration	Six-pack power transistor module (six Darlington transistors, three-phase bridge) with free-wheeling diodes
Package	Case M603, insulated type (UL E82988)
VCBO / VCEO	600 V / 600 V
VCEO(sus)	450 V
IC	100 A (DC)
ICP	200 A (1 ms)
hFE min.	80 @ 100 A, VCE = 5 V
VCE(sat) max.	2.0 V @ 100 A, IB = 2.5 A
Collector power dissipation	400 W (one transistor)
Isolation voltage	AC 2500 V (1 min)
Mounting torque	M5: 2.5 - 3.0 N·m recommended (3.5 N·m max.)
Terminal torque	M4: 1.4 - 1.6 N·m recommended (1.7 N·m max.)
Weight	450 g
Junction temperature	150 °C max.

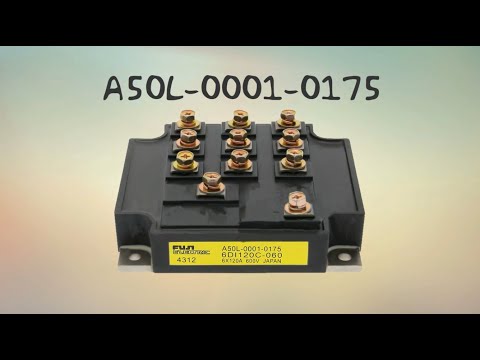

A50L-0001-0175 Video
