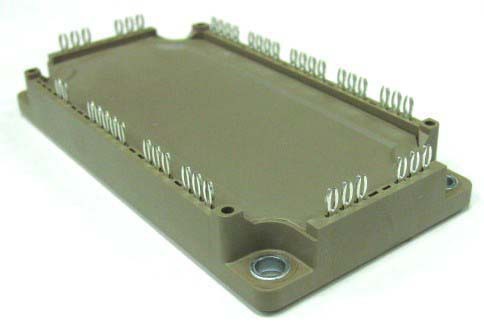

7MBR50VX120-50 Fuji Electric - IGBT Module
7MBR50VX120-50 Description
7MBR50VX120-50 is a 1200 V / 50 A PIM (converter + brake + inverter) IGBT module from Fuji Electric, V series (6th-Generation). Typical applications: inverter for Motor Drives, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.
USComponent supplies 7MBR50VX120-50 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Low VCE(sat)
- Compact Package
- P.C.Board Mount Module
- Converter Diode Bridge Dynamic Brake Circuit
- RoHS compliant product
Target Applications
Fuji Electric 7MBR50VX120-50 is used for Inverter for Motor Drives, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.
Key Specifications
7MBR50VX120-50 is a 1200 V / 50 A PIM (converter + brake + inverter) IGBT module from Fuji Electric, V series (6th-Generation). Source: Fuji Electric datasheet and product data.
| Parameter | Value |
|---|---|
| Manufacturer | Fuji Electric |
| Product type | IGBT module |
| Series | V series (6th-Generation) |
| Configuration | PIM (converter + brake + inverter) |
| Collector-emitter voltage (VCES) | 1200 V |
| Collector current (IC) | 50 A |
| Package | M722 (EconoPIM™) |
| Terminal type | Press fit pins |
| Size | 62 x 122 mm |
| Net mass | 310 g |
| Supply status (Fuji) | Available |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for 7MBR50VX120-50 (reply within 24 hours)
Related Part Numbers
| 7MBR75VX120-50 1200V, 75A | 7MBR100VX120-50 1200V, 100A | 7MBR150VX120-50 1200V, 150A | 7MBR50SB120-50 1200V, 50A |
| 7MBR50UH120-50 1200V, 50A | 7MBR50VB120A-50 1200(V) / 50(A) | 7MBR50VY060-50 600V, 50A | 7MBR50VW120-50 1200V, 50A |
| 7MBR50VY120-50 1200V, 50A | 7MBR50VR120-50 1200V, 50A | 7MBR50VZ120-50 1200V, 50A | 7MBR50VP120-50 1200V, 50A |
| 7MBR50XKB065-50 650V, 50A | 7MBR50VP060-50 600V, 50A | 7MBR50XKD065-50 650V, 50A | 7MBR50VN120-50 1200V, 50A |
