7MBR50SA060 Fuji Electric - IGBT Module

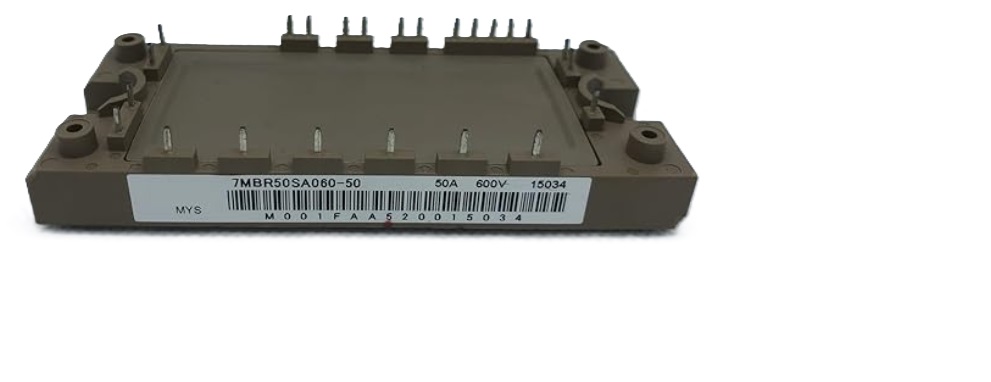

7MBR50SA060 Description

The Fuji Electric 7MBR50SA060 is an IGBT module, rated for 600 V and 50 A. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the 7MBR50SA060; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

7MBR50SA060 is a 600V 50A IGBT Module.

Target Applications

Fuji Electric 7MBR50SA060 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Fuji Electric
Configuration	Power Integrated Module (PIM): three-phase inverter + converter diode bridge + dynamic brake
Inverter VCES / IC	600 V / 50 A (ICP 100 A)
Brake VCES / IC	600 V / 30 A (ICP 60 A)
Converter VRRM	800 V
Converter output current IO	50 A
Converter surge current IFSM	350 A (10 ms)
Junction temperature	150 °C max.

7MBR50SA060 Video

Technical document (PDF)  |  Request a quote for 7MBR50SA060 (reply within 24 hours)
