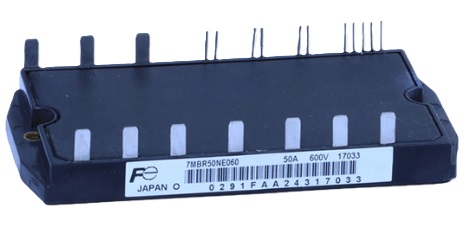

7MBR50NE-060 Fuji Electric - IGBT power module

7MBR50NE-060 Description

Rated at 600 V and 50 A, the Fuji Electric 7MBR50NE-060 is an IGBT module. The module contains a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the 7MBR50NE-060 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Fuji Electric 7MBR50NE-060 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

7MBR50NE-060 is a 600 V, 50 A power integrated module (PIM: converter + brake + inverter), 7-in-1 (PIM) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power integrated module (PIM: converter + brake + inverter)
Configuration	7-in-1 (PIM)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	50 A
Isolation voltage	2,500 V
Datasheet	Available on this page (PDF)
