7MBR35SD120B Fuji Electric - IGBT power module

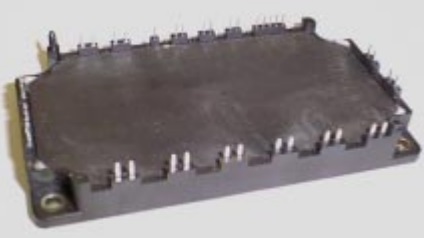

7MBR35SD120B Description

7MBR35SD120B is a 1200 V, 50 A IGBT module made by Fuji Electric. The module contains a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the 7MBR35SD120B, and please confirm ratings against the datasheet before ordering.

Target Applications

Fuji Electric 7MBR35SD120B is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Fuji Electric
Configuration	PIM / CIB (converter + brake + inverter, 7-in-1)
VCES	1200 V
IC nom	50 A
Similar-rating parts	BSM35GP120, BSM35GP120G, 7MBR35SD120, 7MBR35SB120-01, 7MBR35SB120B (same nominal voltage and current rating, for reference only. Package, pinout and characteristics may differ; please compare datasheets to determine suitability)
