7MBR35SD120Fuji Electric - IGBT power module

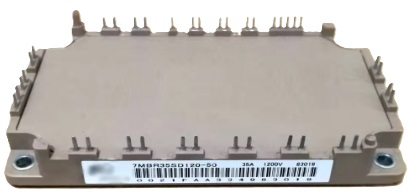

7MBR35SD120 Description

The Fuji Electric 7MBR35SD120 is an IGBT module rated at 1200 V and 35 A. This type of device is widely used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 7MBR35SD120.

Target Applications

Fuji Electric 7MBR35SD120 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Fuji Electric
Configuration	PIM with built-in converter thyristor: three-phase inverter + converter bridge + dynamic brake
Inverter VCES / IC	1200 V / 50 A (TC = 25 °C), ICP 100 A
Brake VCES / IC	1200 V / 35 A (TC = 25 °C), ICP 70 A
Converter output current IO	35 A
Converter surge current IFSM	360 A (10 ms)
Isolation voltage	AC 2500 V (1 min)
Mounting torque	1.7 N·m

7MBR35SD120 Video

Download 7MBR35SD120 Datasheet

7MBR35SD120 PDF Datasheet
