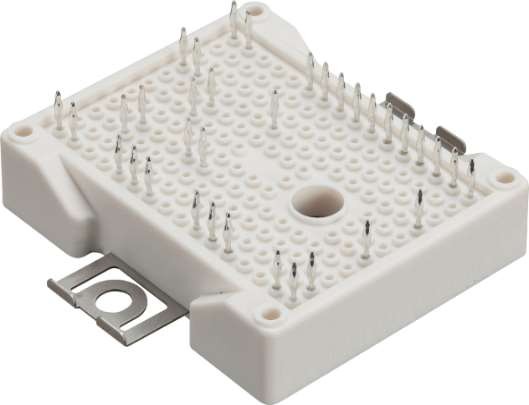

7MBR25VKB120-50 Fuji Electric - IGBT Module
7MBR25VKB120-50 Description
7MBR25VKB120-50 is a 1200 V / 25 A PIM (converter + brake + inverter) IGBT module from Fuji Electric, V series (6th-Generation). Typical applications: inverter for Motor Drives, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.
USComponent supplies 7MBR25VKB120-50 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Low VCE(sat)
- Compact Package
- P.C.Board Mount Module
- Converter Diode Bridge Dynamic Brake Circuit
- RoHS compliant product
Target Applications
Fuji Electric 7MBR25VKB120-50 is used for Inverter for Motor Drives, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.
Key Specifications
7MBR25VKB120-50 is a 1200 V / 25 A PIM (converter + brake + inverter) IGBT module from Fuji Electric, V series (6th-Generation). Source: Fuji Electric datasheet and product data.
| Parameter | Value |
|---|---|
| Manufacturer | Fuji Electric |
| Product type | IGBT module |
| Series | V series (6th-Generation) |
| Configuration | PIM (converter + brake + inverter) |
| Collector-emitter voltage (VCES) | 1200 V |
| Collector current (IC) | 25 A |
| Package | M727 (Small PIM) |
| Terminal type | Press fit pins |
| Size | 56.7 x 62.8 mm |
| Net mass | 45 g |
| Supply status (Fuji) | Available |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for 7MBR25VKB120-50 (reply within 24 hours)
Related Part Numbers
| 7MBR35VKB120-50 1200V, 35A | 7MBR15VKB120-50 1200V, 15A | 7MBR50VKB060-50 600V, 50A | 7MBR25UA-120-50 1200V, 25A |
| 7MBR25SA-120-50 1200V, 25A | 7MBR25VA120-50 1200V, 25A | 7MBR25VKD120-50 1200V, 25A | 7MBR25VM120-50 1200V, 25A |
| 7MBR25UG120 1200(V) / 25(A) | 7MBR25VP120-50 1200V, 25A | 7MBR25UA120 1200V, 25A | 7MBR25VW120-50 1200V, 25A |
| 7MBR25VY120-50 1200V, 25A | 7MBR25SC120 1200V ,25A | 7MBR25XKA120-50 1200V, 25A | 7MBR25SA140-01 1400V, 25A |
