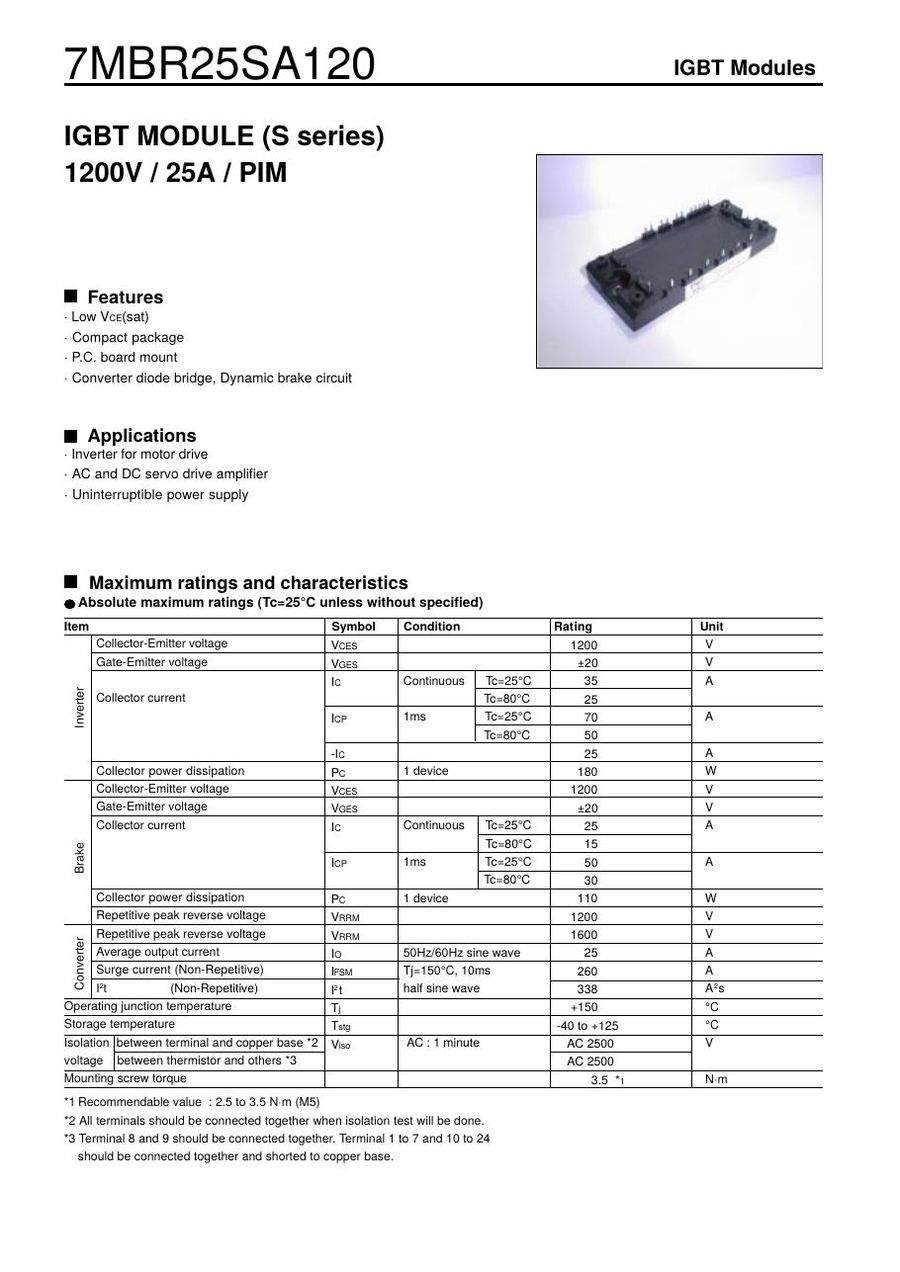

7MBR25SA-120 Fuji Electric - IGBT Module

7MBR25SA-120 Description

The Fuji Electric 7MBR25SA-120 is an IGBT module, rated for 1200 V and 25 A. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

We help engineers and repair technicians find parts like the 7MBR25SA-120, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Fuji Electric 7MBR25SA-120 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

7MBR25SA-120 is a 1,200 V, 25 A IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	25 A
Isolation voltage	2,500 V
Datasheet	Available on this page (PDF)
