7MBR10SA120J-20 Fuji Electric - IGBT Module

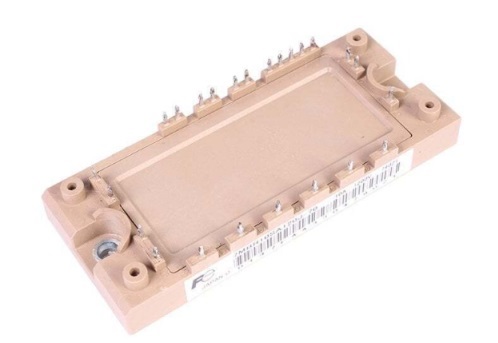

7MBR10SA120J-20 Description

Rated at 1400 V and 10 A, the Fuji Electric 7MBR10SA120J-20 is an IGBT module. Inside, it has a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the 7MBR10SA120J-20, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Target Applications

Fuji Electric 7MBR10SA120J-20 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

Manufacturer	Fuji Electric
Configuration	PIM / CIB (converter + brake + inverter, 7-in-1)
VCES	1200 V
IC nom	10 A
Similar-rating parts	FP10R12KE3, FP10R12YT3, FP10R12W1T4-B3, 7MBR10SA120, 7MBR10NF120 (same nominal voltage and current rating, for reference only. Package, pinout and characteristics may differ; please compare datasheets to determine suitability)
