7MBP150VEA120-50 Fuji Electric - Intelligent Power Module

Category: Intelligent Power Modules (IPM)

Specifications: 1200V, 150A

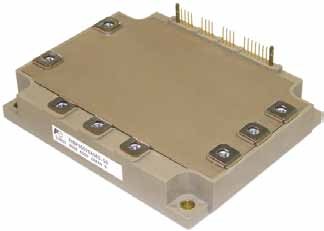

7MBP150VEA120-50 Fuji Electric Intelligent Power Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

7MBP150VEA120-50 Description

7MBP150VEA120-50 is a 1200 V / 150 A intelligent power module (IPM) from Fuji Electric, V series (6th-Generation).

USComponent supplies 7MBP150VEA120-50 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Temperature protection provided by directly detecting the junction temperature of the IGBTs
  • Low power loss and soft switching
  • High performance and high reliability IGBT with overheating protection
  • Higher reliability because of a big decrease in number of parts in built-in control circuit

Target Applications

Fuji Electric 7MBP150VEA120-50 finds applications in various industries and systems where high power switching is required.

Key Specifications

7MBP150VEA120-50 is a 1200 V / 150 A intelligent power module (IPM) from Fuji Electric, V series (6th-Generation). Source: Fuji Electric datasheet and product data.

ParameterValue
ManufacturerFuji Electric
Product typeIntelligent power module (IPM)
SeriesV series (6th-Generation)
Collector-emitter voltage (VCES)1200 V
Collector current (IC)150 A
PackageP631 (IPM)
Size110 x 142 mm
Net mass940 g
Supply status (Fuji)Available
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for 7MBP150VEA120-50 (reply within 24 hours)
