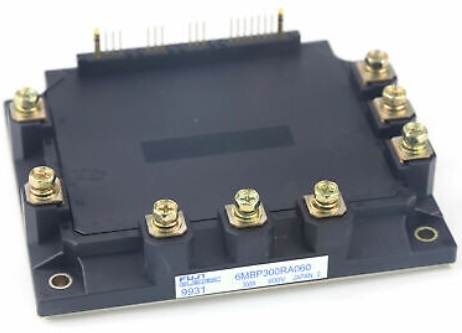

6MBP300RA-060 Fuji Electric - IGBT-IPM

6MBP300RA-060 Description

The 6MBP300RA-060 from Fuji Electric is an intelligent power module (IPM) with a 600 V / 300 A rating. Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the 6MBP300RA-060, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

6MBP300RA-060 is a 600V 300A IGBT-IPM.

Target Applications

Fuji Electric 6MBP300RA-060 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

Manufacturer	Fuji Electric
Configuration	IGBT-IPM, R-Series, 6-in-1 (three-phase inverter)
DC bus voltage	450 V
VCES	600 V
Inverter IC	300 A
Collector power dissipation	1040 W
VCE(sat) max.	2.8 V
Package	P612

6MBP300RA-060 Video

Technical document (PDF)  |  Request a quote for 6MBP300RA-060 (reply within 24 hours)
