6MBP300KA-060 Fuji Electric - IGBT-IPM

6MBP300KA-060 Description

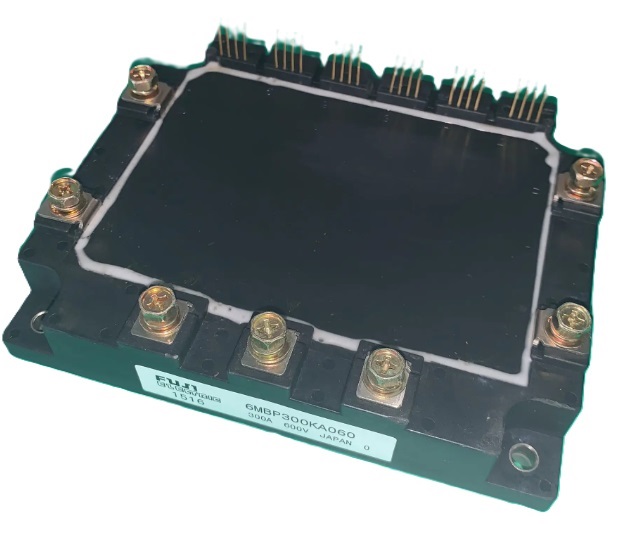

The 6MBP300KA-060 from Fuji Electric is an intelligent power module (IPM) with a 600 V / 300 A rating. The module contains six switches arranged as a three-phase bridge (6-in-1). It is mostly used in small and mid-size AC drives and servo amplifiers, where built-in gate drive and protection save board space. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the 6MBP300KA-060 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

6MBP300KA-060 is a 600V 300A IGBT-IPM.

Target Applications

Fuji Electric 6MBP300KA-060 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

Manufacturer	Fuji Electric
Configuration	IPM, six-pack (6-in-1)
VCES	600 V
IC nom	300 A
Similar-rating parts	PM300CBS060, PM300CLA060, PM300CSD060, PM300CSA060, PM300CVA060, 6MBP300KA060, 6MBP300RA-060, 6MBP300RA060, 6MBP300KA060-01 (same nominal voltage and current rating, for reference only. Package, pinout and characteristics may differ; please compare datasheets to determine suitability)
