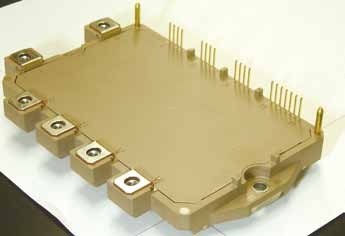

6MBP100VDA120-50 Fuji Electric - Intelligent Power Module
6MBP100VDA120-50 Description
6MBP100VDA120-50 is a 1200 V / 100 A intelligent power module (IPM) from Fuji Electric, V series (6th-Generation).
USComponent supplies 6MBP100VDA120-50 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Temperature protection provided by directly detecting the junction temperature of the IGBTs
- Low power loss and soft switching
- High performance and high reliability IGBT with overheating protection
- Higher reliability because of a big decrease in number of parts in built-in control circuit
Target Applications
Fuji Electric 6MBP100VDA120-50 finds applications in various industries and systems where high power switching is required.
Key Specifications
6MBP100VDA120-50 is a 1200 V / 100 A intelligent power module (IPM) from Fuji Electric, V series (6th-Generation). Source: Fuji Electric datasheet and product data.
| Parameter | Value |
|---|---|
| Manufacturer | Fuji Electric |
| Product type | Intelligent power module (IPM) |
| Series | V series (6th-Generation) |
| Collector-emitter voltage (VCES) | 1200 V |
| Collector current (IC) | 100 A |
| Package | P630 (IPM) |
| Size | 84 x 128.5 mm |
| Net mass | 290 g |
| Supply status (Fuji) | Available |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for 6MBP100VDA120-50 (reply within 24 hours)
Related Part Numbers
| 7MBP100VDA120-50 1200V, 100A | 6MBP75VDA120-50 1200V, 75A | 6MBP100VDA060-50 600V, 100A | 6MBP50VDA120-50 1200V, 50A |
| 6MBP35VDA120-50 1200V, 35A | 6MBP25VDA120-50 1200V, 25A | 7MBP100VDA060-50 600V, 100A | 7MBP25VDA120-50 1200V, 25A |
| 6MBP100VDN060-50 600V, 100A | 6MBP100VDN120-50 1200V, 100A | 6MBP100VCA060-51 600V, 100A | 6MBP100VEA120-50 1200V, 100A |
| 6MBP100TEA060 600V, 100A | 6MBP100VFN060-50 600V, 100A | 6MBP100RTJ060-01 600V, 100A | 6MBP100XBA065-50 650V, 100A |
