6MBI15L-120 Fuji Electric - IGBT power module

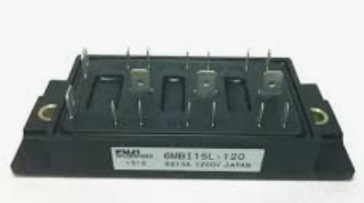

6MBI15L-120 Description

Rated at 1200 V and 15 A, the Fuji Electric 6MBI15L-120 is an IGBT module. It is built with six switches arranged as a three-phase bridge (6-in-1). You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters.

Request a quote for the 6MBI15L-120 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Fuji Electric 6MBI15L-120 is used for General Purpose Inverter AC and DC Servo Drive Amplifier Uninterruptible Power Supply Industrial Machines, such as Welding Machine.

Key Specifications

Manufacturer	Fuji Electric
Configuration	Six-pack IGBT module (6-in-1), L-Series (high speed switching)
VCES	1200 V
IC	15 A (continuous)
IC pulse	30 A (1 ms)
VCE(sat) typ. / max.	2.7 V / 3.5 V @ 15 A
Max. power dissipation	120 W
Isolation voltage	AC 2500 V (1 min)
Mounting torque	M5: 25 - 35 kg·cm recommended
Package	Case M607 (UL E82988)
Weight	235 g
Junction temperature	150 °C max.
