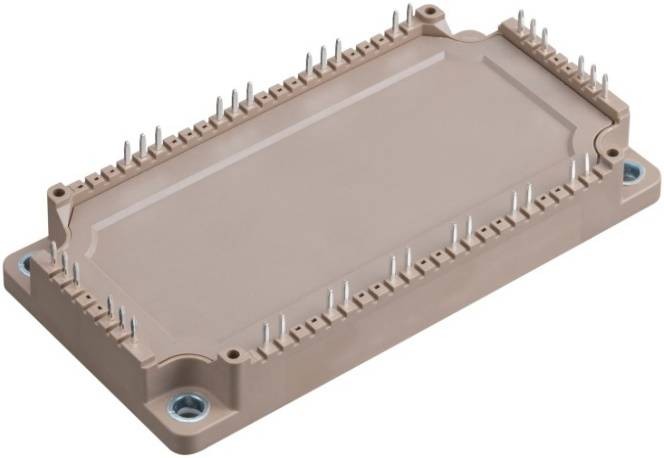

6MBI150XBA120-50 Fuji Electric - IGBT Module
6MBI150XBA120-50 Description
6MBI150XBA120-50 is a 1200 V / 150 A 6-pack (3-phase inverter) IGBT module from Fuji Electric, X series (7th-Generation). Typical applications: inverter for Motor Drives, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.
USComponent supplies 6MBI150XBA120-50 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Low VCE(sat)
- Compact Package
- P.C.Board Mount Module
- Converter Diode Bridge Dynamic Brake Circuit
- RoHS compliant product
Target Applications
Fuji Electric 6MBI150XBA120-50 is used for Inverter for Motor Drives, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.
Key Specifications
6MBI150XBA120-50 is a 1200 V / 150 A 6-pack (3-phase inverter) IGBT module from Fuji Electric, X series (7th-Generation). Source: Fuji Electric datasheet and product data.
| Parameter | Value |
|---|---|
| Manufacturer | Fuji Electric |
| Product type | IGBT module |
| Series | X series (7th-Generation) |
| Configuration | 6-pack (3-phase inverter) |
| Collector-emitter voltage (VCES) | 1200 V |
| Collector current (IC) | 150 A |
| Package | M668 (EconoPACK™) |
| Terminal type | Solder pins |
| Size | 62 x 122 mm |
| Net mass | 310 g |
| Supply status (Fuji) | Available |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for 6MBI150XBA120-50 (reply within 24 hours)
Related Part Numbers
| 6MBI200XBA120-50 1200V, 200A | 6MBI100XBA120-50 1200V, 100A | 6MBI150VB-120-50 1200V, 150A | 6MBI150VX-120-50 1200V, 150A |
| 6MBI150XXA120-50 1200V, 150A | 6MBI150UB-120 1200(V) / 150(A) | 6MBI15F-060 600V, 15A | 6MBI150VX-060-50 600V, 150A |
| 6MBI15F-120 1200V, 15A | 6MBI15GS-060 600V, 15A | 6MBI150VB-060-50 600V, 150A | 6MBI15GS-060-01 600V, 15A |
| 6MBI150UB-140 1400V, 150A | 6MBI15L-060 600V, 15A | 6MBI150UB-120-01 1200V, 150A | 6MBI15L-120 1200v/15a |
