6DI15S-050 Fuji Electric - Power Transistor Module

6DI15S-050 Description

The Fuji Electric 6DI15S-050 is a power transistor (bipolar darlington) module, rated for 600 V and 15 A. Inside, it has six switches arranged as a three-phase bridge (6-in-1). It was a workhorse in drives and power supplies before IGBTs took over, and it is still needed to repair that equipment.

Looking for a replacement 6DI15S-050? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Fuji Electric 6DI15S-050 is used for Power Switching, AC Motor Controls and UPS (Uninterruptible Power Supply).

Key Specifications

6DI15S-050 is a 600 V, 15 A power transistor (bipolar Darlington) module, six-pack configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Six-pack
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	15 A

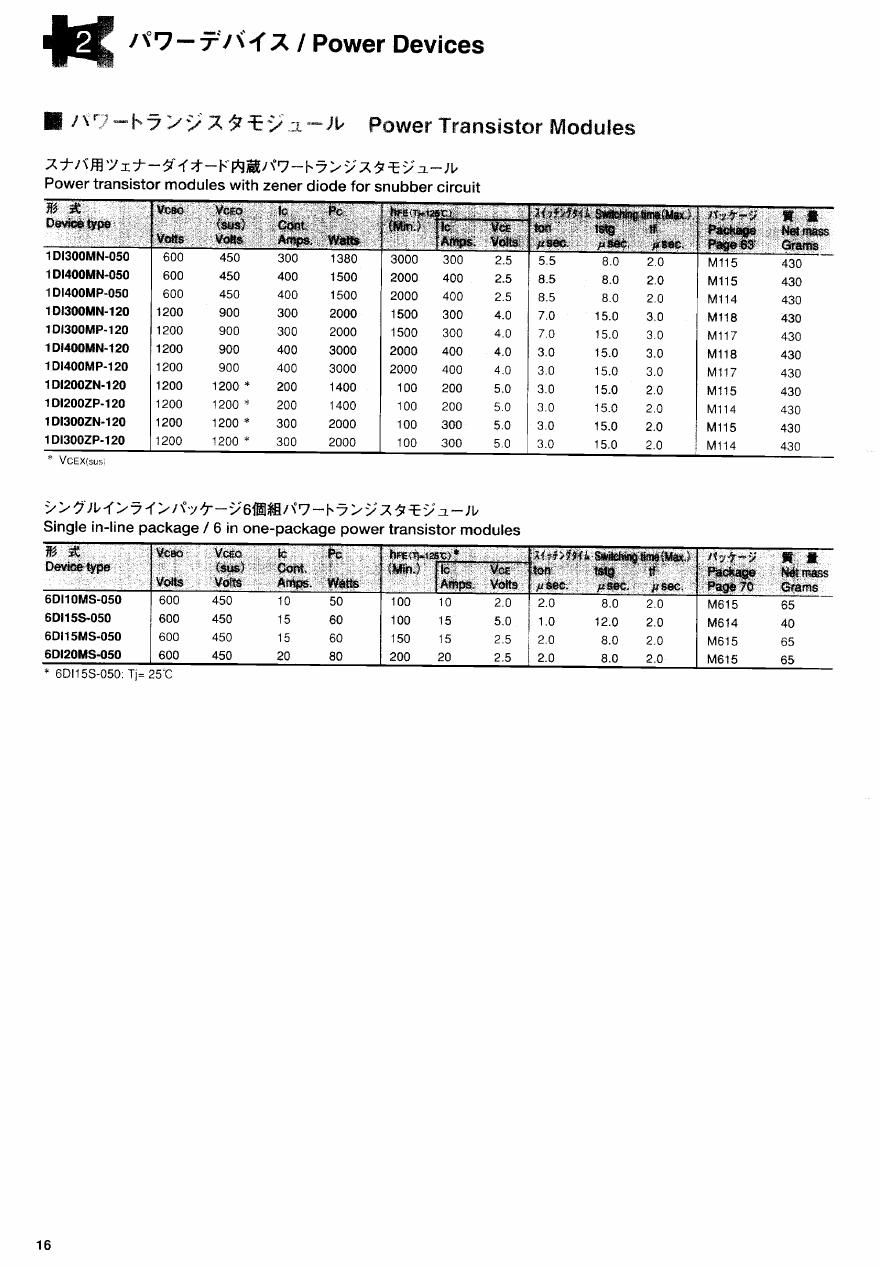

Datasheet	Available on this page (PDF)

6DI15S-050 Video

Technical document (PDF)  |  Request a quote for 6DI15S-050 (reply within 24 hours)
