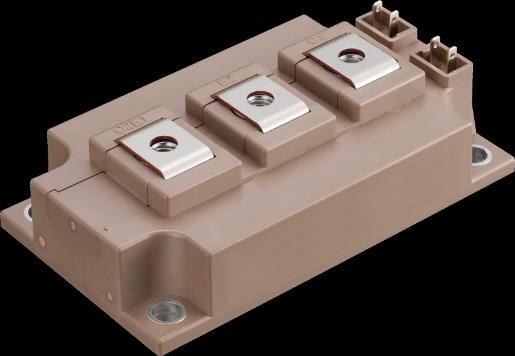

2MSI200VWAH-120-53 Fuji Electric - IGBT Module

2MSI200VWAH-120-53 Description

2MSI200VWAH-120-53 is a 1200 V / 200 A 2-pack (half-bridge) hybrid SiC IGBT module (IGBT + SiC SBD) from Fuji Electric. Typical applications: inverter for Motor Drives, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply, Active Front End.

USComponent supplies 2MSI200VWAH-120-53 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Fuji Electric 2MSI200VWAH-120-53 is used for Inverter for Motor Drives, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply, Active Front End.

Key Specifications

2MSI200VWAH-120-53 is a 1200 V / 200 A 2-pack (half-bridge) hybrid SiC IGBT module (IGBT + SiC SBD) from Fuji Electric. Source: Fuji Electric datasheet and product data.

Parameter	Value
Manufacturer	Fuji Electric
Product type	Hybrid SiC IGBT module (IGBT + SiC SBD)
Configuration	2-pack (half-bridge)
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	200 A
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2MSI200VWAH-120-53 (reply within 24 hours)
