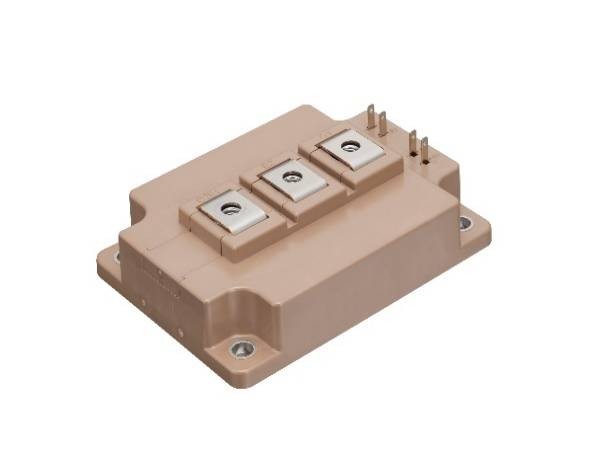

2MBI450XEE120-50 Fuji Electric - IGBT Module

2MBI450XEE120-50 Description

2MBI450XEE120-50 is a 1200 V / 450 A 2-pack (half-bridge) IGBT module from Fuji Electric, X series (7th-Generation). Typical applications: inverter for Motor Drives, AC and DC Servo Drives, Uninterruptible Power Supply Systems, Industrial machines, Welding machines.

USComponent supplies 2MBI450XEE120-50 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Fuji Electric 2MBI450XEE120-50 is used for Inverter for Motor Drives, AC and DC Servo Drives, Uninterruptible Power Supply Systems, Industrial machines, Welding machines.

Key Specifications

2MBI450XEE120-50 is a 1200 V / 450 A 2-pack (half-bridge) IGBT module from Fuji Electric, X series (7th-Generation). Source: Fuji Electric datasheet and product data.

Parameter	Value
Manufacturer	Fuji Electric
Product type	IGBT module
Series	X series (7th-Generation)
Configuration	2-pack (half-bridge)
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	450 A
Package	M277 (Standard)
Terminal type	Tabs
Size	80 x 110 mm
Net mass	470 g
Supply status (Fuji)	Available
Datasheet	Available on this page (PDF)
