2MBI1400VXB-120E-54Fuji Electric - IGBT Module

2MBI1400VXB-120E-54 Description

2MBI1400VXB-120E-54 is an Insulated Gate Bipolar Transistor (IGBT) module manufactured by Fuji Electric. It is part of the 2nd generation X series IGBT modules, which offer improved performance and efficiency over previous models. This module has a maximum collector-emitter voltage rating of 1400 volts and a maximum collector current rating of 120 amps. It is a dual IGBT module, meaning it contains two IGBTs in parallel in one package, which simplifies the assembly process and reduces overall system costs. The 2MBI1400VXB-120E-54 module has low on-state voltage and low switching losses, which leads to high efficiency and reduced power dissipation. It is also designed with a built-in free-wheeling diode, which protects against reverse voltage spikes that can occur during switching. This IGBT module is suitable for use in a wide range of applications, including motor drives, inverters, welding equipment, and other high-power switching applications. Its rugged design and high thermal performance make it suitable for use in harsh environments. Overall, the 2MBI1400VXB-120E-54 IGBT module is a high-performance component that offers fast switching speeds, high reliability, and excellent thermal performance

Target Applications

Fuji Electric 2MBI1400VXB-120E-54 is used for Inverter for Motor Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply and Industrial machines, such as Welding Machines.

Key Specifications

Manufacturer	Fuji Electric
Category	IGBT Modules
Rated voltage	1200 V
Rated current	1400 A

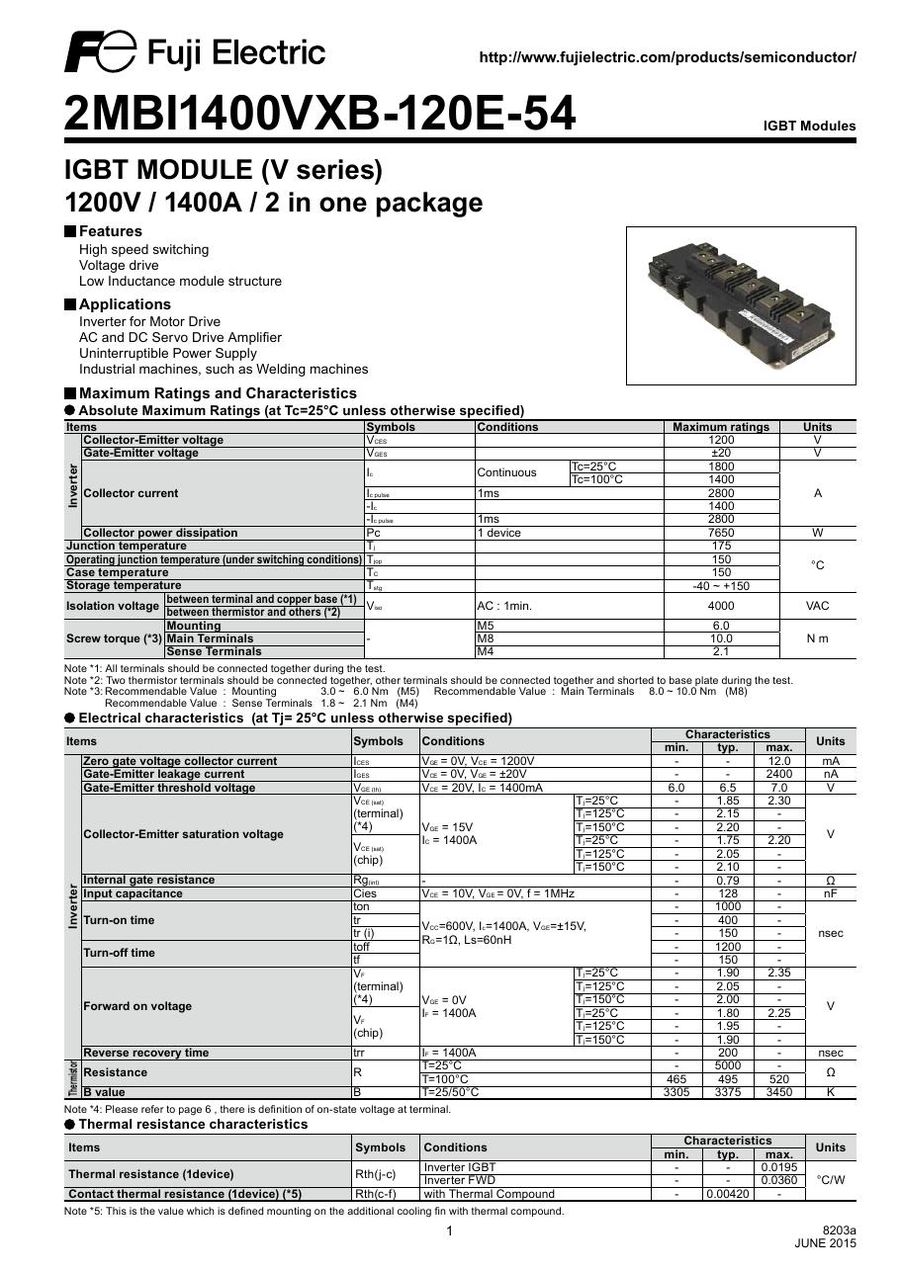

Download 2MBI1400VXB-120E-54 Datasheet

2MBI1400VXB-120E-54 PDF Datasheet
