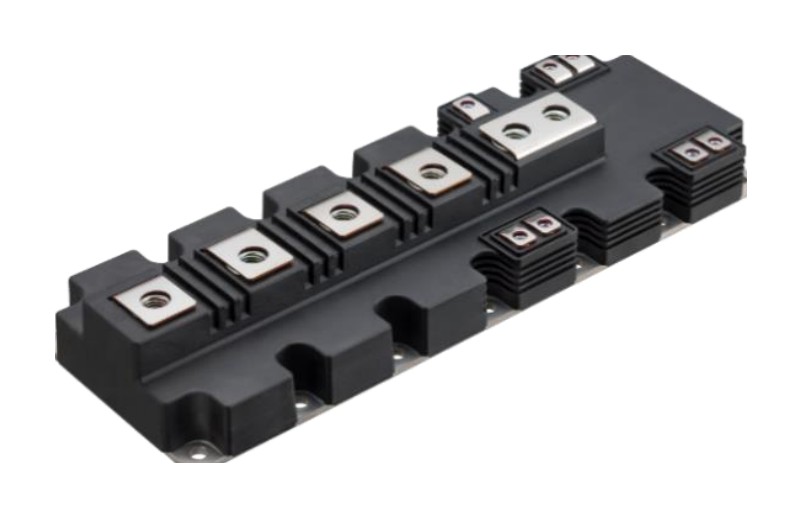

1MBI1400VXB-170PH-50 Fuji Electric - IGBT Module

1MBI1400VXB-170PH-50 Description

1MBI1400VXB-170PH-50 is a 1,700 V / 1,400 A 1-pack chopper IGBT module from Fuji Electric, V series. Datasheet ratings: IC 1,400 A continuous at Tc = 100 °C (1,800 A at 25 °C), 2,800 A pulse, VCE(sat) 2.10 V typ. at 1,400 A, 4,000 VAC isolation. Package PrimePACK™ M272, screw terminals, 89 x 250 mm. Typical applications: Inverter for Motor Drives, AC and DC Servo Drives; Uninterruptible Power Supply Systems; Industrial machines, such as Welding machines.

USComponent supplies 1MBI1400VXB-170PH-50 and other Fuji Electric IGBT modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Fuji Electric 1MBI1400VXB-170PH-50 is used for Inverter for Motor Drives, AC and DC Servo Drives, Uninterruptible Power Supply Systems and Industrial machines, such as Welding machines.

Key Specifications

1MBI1400VXB-170PH-50 is a 1,700 V / 1,400 A 1-pack chopper IGBT module from Fuji Electric, V series. Source: Fuji Electric datasheet.

Parameter	Value
Manufacturer	Fuji Electric
Product type	IGBT module
Series	V series (6th generation)
Configuration	1-pack (1 in one package, chopper)
Collector-emitter voltage (VCES)	1,700 V
Collector current IC (continuous, Tc = 25 °C)	1,800 A
Collector current IC (continuous, Tc = 100 °C)	1,400 A
Collector current IC pulse (1 ms)	2,800 A
Collector power dissipation (Pc, 1 device)	8,820 W
VCE(sat) (terminal), IC = 1,400 A, VGE = 15 V, Tj = 25 °C	2.10 V typ. / 2.55 V max.
Gate-emitter threshold voltage VGE(th)	6.0 / 6.5 / 7.0 V (min. / typ. / max.)
Junction temperature (Tj)	175 °C
Operating junction temperature (Tjop, under switching)	150 °C
Storage temperature (Tstg)	-40 to +150 °C
Isolation voltage (Viso, AC 1 min)	4,000 VAC
Screw torque, mounting	M5: 3.0 - 6.0 N·m (recommended)
Screw torque, main terminals	M8: 8.0 - 10.0 N·m (recommended)
Screw torque, sense terminals	M4: 1.8 - 2.1 N·m (recommended)
Package	PrimePACK™ M272
Terminals	Screw terminals
Size	89 x 250 mm
Weight (typ.)	1,250 g
Supply status (Fuji)	Available
Applications (datasheet)	Inverter for Motor Drives, AC and DC Servo Drives; Uninterruptible Power Supply Systems; Industrial machines, such as Welding machines
Datasheet	Available on this page (PDF)
