1DI400D-100 Fuji Electric - Power Module

1DI400D-100 Description

The 1DI400D-100 from Fuji Electric is a Darlington transistor module with a 1000 V / 400 A rating. It is built with a single switch with its freewheeling diode (1-in-1). Modules of this type were widely used in motor drives, UPS units and power supplies, and many are still running in older equipment today.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the 1DI400D-100, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Fuji Electric 1DI400D-100 is used for Chopper Controls, AC Motor Controls, DC Motor Controls and Uninterruptible Power Supply.

Key Specifications

1DI400D-100 is a 1,000 V, 400 A power transistor (bipolar Darlington) module, single configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Single
Collector-emitter voltage (VCES)	1,000 V
Collector current (IC)	400 A

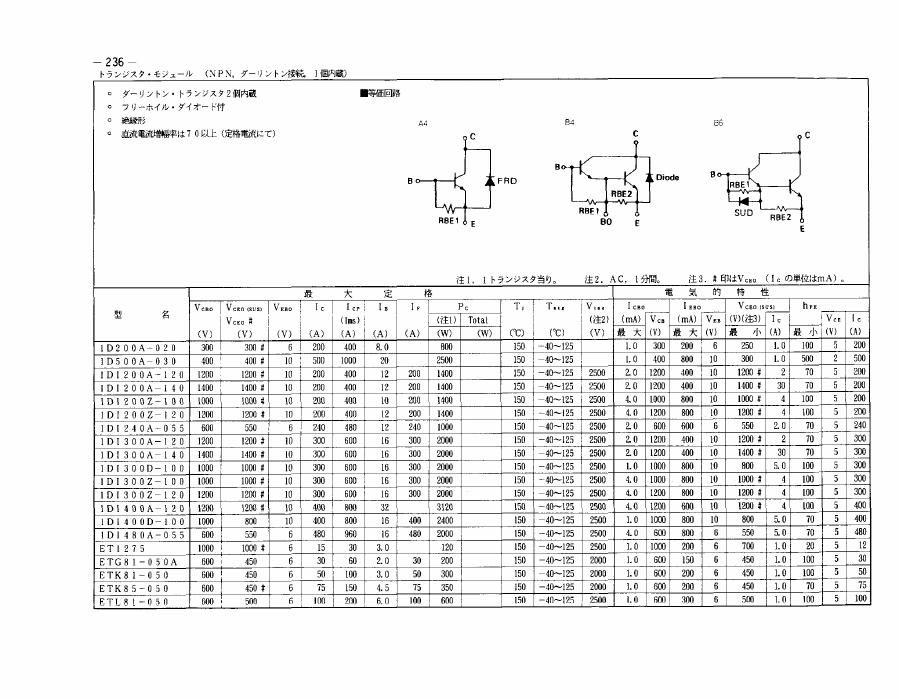

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 1DI400D-100 (reply within 24 hours)
