1D500A-030A Fuji Electric - Power Transistor Module

1D500A-030A Description

Fuji Electric 1D500A-030A is a power transistor (bipolar darlington) module rated at 300 V and 500 A. It is built with a single switch with its freewheeling diode (1-in-1). Parts like this are found in drives, power converters and other industrial control systems.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the 1D500A-030A, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Fuji Electric 1D500A-030A is used for Power Switching, Uninterruptible Power Supply, DC Motor Controls and Welding Machines.

Key Specifications

1D500A-030A is a 300 V, 500 A power transistor (bipolar Darlington) module, single configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Single
Collector-emitter voltage (VCES)	300 V
Collector current (IC)	500 A

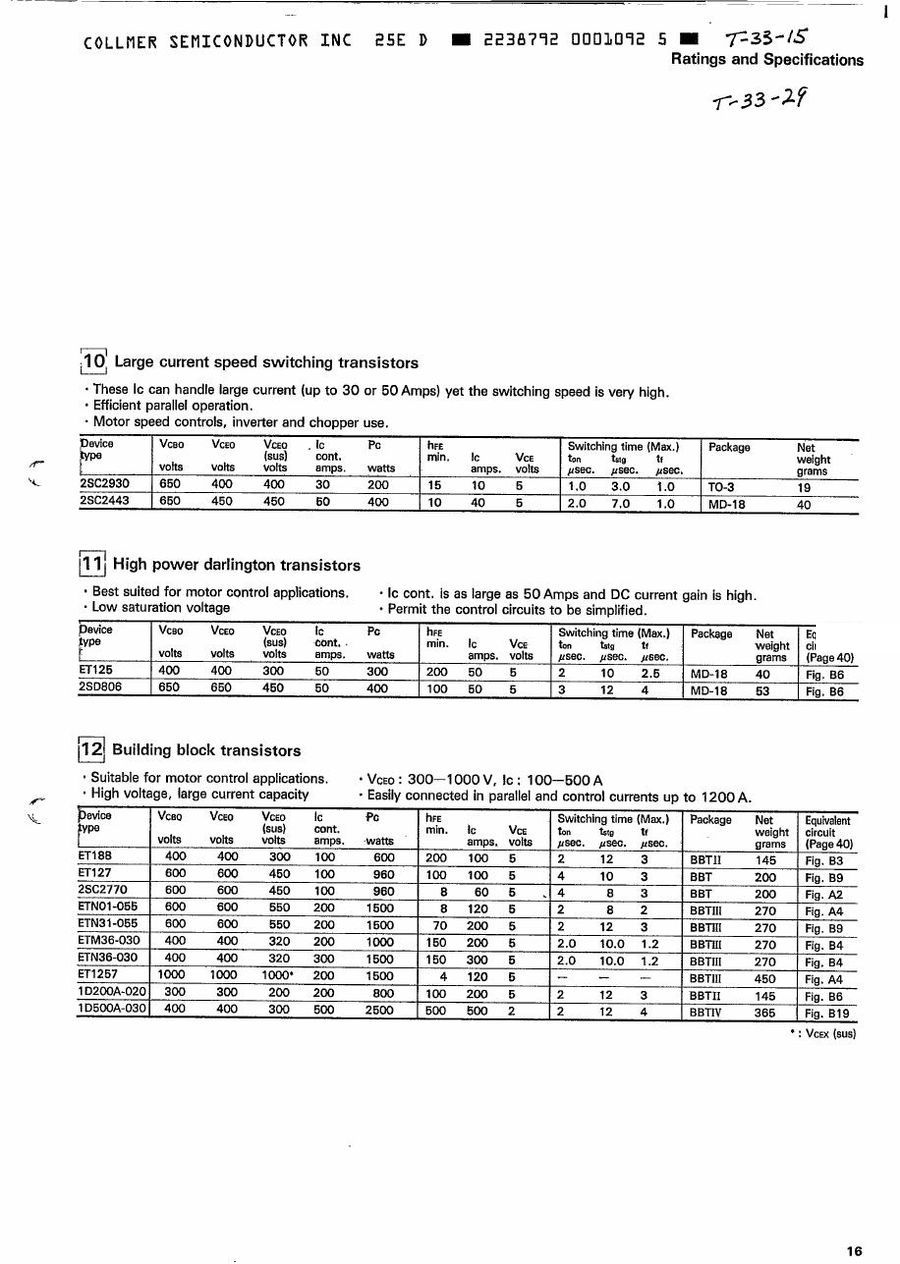

Datasheet	Available on this page (PDF)

1D500A-030A Video

Technical document (PDF)  |  Request a quote for 1D500A-030A (reply within 24 hours)
