TT61N16KOF-KInfineon (Eupec) - SCR

TT61N16KOF-K Description

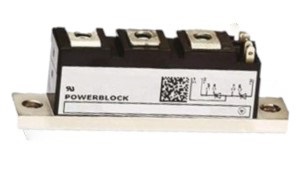

Infineon Technologies (formerly Eupec) TT61N16KOF-K is a thyristor module. This type of device is widely used in soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TT61N16KOF-K.

Target Applications

Infineon (Eupec) TT61N16KOF-K is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Phase control thyristor module, two thyristors (TT)
VDRM / VRRM	1600 V
VRSM	1700 V
ITAVM	60 A (TC = 85 °C)
ITRMSM	120 A
ITSM	1550 A (25 °C, 10 ms)
I²t	12,000 A²s (25 °C, 10 ms)
On-state voltage vT max.	1.9 V @ 300 A
Gate trigger current / voltage	120 mA / 1.4 V max.
Turn-off time tq typ.	120 µs
Isolation test voltage	2.5 kV RMS (1 min)
Mounting torque	4 Nm (±15%)
Terminal torque	4 Nm (±10%)
Weight	160 g
Junction temperature	125 °C max.
