TT250N18KOF Description

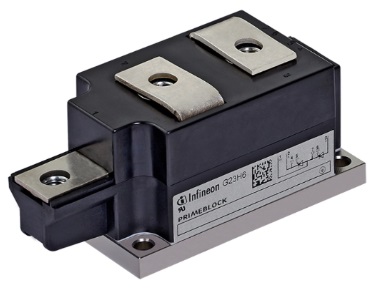

Infineon Technologies (formerly Eupec) TT250N18KOF is a thyristor module rated at 1800 V and 250 A. Typical applications include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

We help engineers and repair technicians find parts like the TT250N18KOF, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Infineon TT250N18KOF is used for DC motor control, NC equipment, AC motor control, Contactless switches, Electric furnace temperature control, Light dimmers and Welders.

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Phase control thyristor module, two thyristors (TT)
VDRM / VRRM	1800 V
VRSM	1900 V
ITAVM	250 A (TC = 85 °C)
ITRMSM	410 A
ITSM	8000 A (25 °C, 10 ms)
I²t	320,000 A²s (25 °C, 10 ms)
On-state voltage vT max.	1.5 V @ 800 A
Gate trigger current / voltage	200 mA / 2 V max.
Turn-off time tq typ.	250 µs
Isolation test voltage	3.0 kV RMS (1 min)
Mounting torque	5 Nm (±15%)
Terminal torque	12 Nm (±10%)
Weight	800 g
Junction temperature	125 °C max.
