F1892SD600Crydom - Power Transistor Module

F1892SD600 Description

The Crydom F1892SD600 is a power semiconductor module rated at 600 V and 90 A, available from USComponent. This type of component is widely used in motor drives, power conversion and industrial control equipment.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the F1892SD600.

Summary of Features

Target Applications

Crydom F1892SD600 is used for AC/DC power conversion and control: controlled rectifiers, DC motor drives, heater and power control, battery chargers and power supplies.

Key Specifications

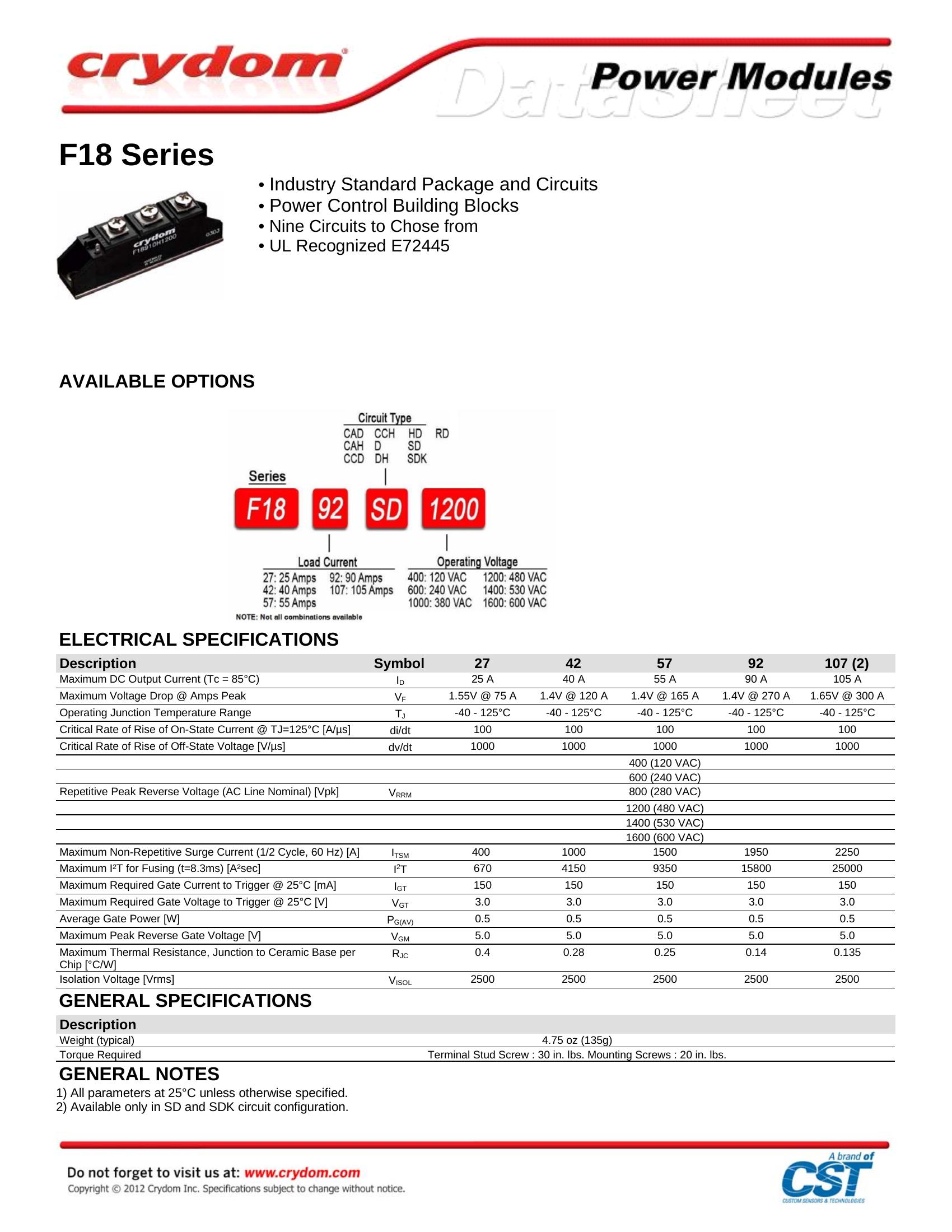

Crydom F1892SD600 is an F18 Series power module (SCR/diode power control building block), circuit type SD, 90 A DC output current, for 240 VAC lines. Source: Crydom F18 Series datasheet. Values at 25°C unless noted.

Parameter	Value
Maximum DC output current (Tc = 85°C)	90 A
Operating voltage code	600 (240 VAC line)
Repetitive peak reverse voltage (VRRM)	600 Vpk
Circuit type	SD (see datasheet circuit diagram)
Maximum voltage drop (VF)	1.40 V @ 270 A
Maximum non-repetitive surge current (1/2 cycle, 60 Hz)	1950 A
Maximum I²t for fusing (8.3 ms)	15800 A²s
Critical rate of rise of on-state current (Tj = 125°C)	100 A/µs
Critical rate of rise of off-state voltage	1000 V/µs
Gate trigger current / voltage (25°C)	150 mA / 3.0 V
Average gate power	0.5 W
Maximum peak reverse gate voltage	5.0 V
Maximum thermal resistance, junction to ceramic base per chip	0.14 °C/W
Operating junction temperature	-40 to 125°C
Isolation voltage	2500 Vrms
Weight (typical)	4.75 oz (135 g)
Torque	Terminal stud screw 30 in-lb; mounting screws 20 in-lb
