3F20-4 Crydom - Filter Module

3F20-4 Description

The 3F20-4 is an EMI noise suppression filter (accessory) made by Crydom. It is used in industrial power electronics such as drives, converters and control equipment.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the 3F20-4, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Crydom 3F20-4 is used for installation and protection of Crydom solid state relays in control panels and industrial equipment.

Key Specifications

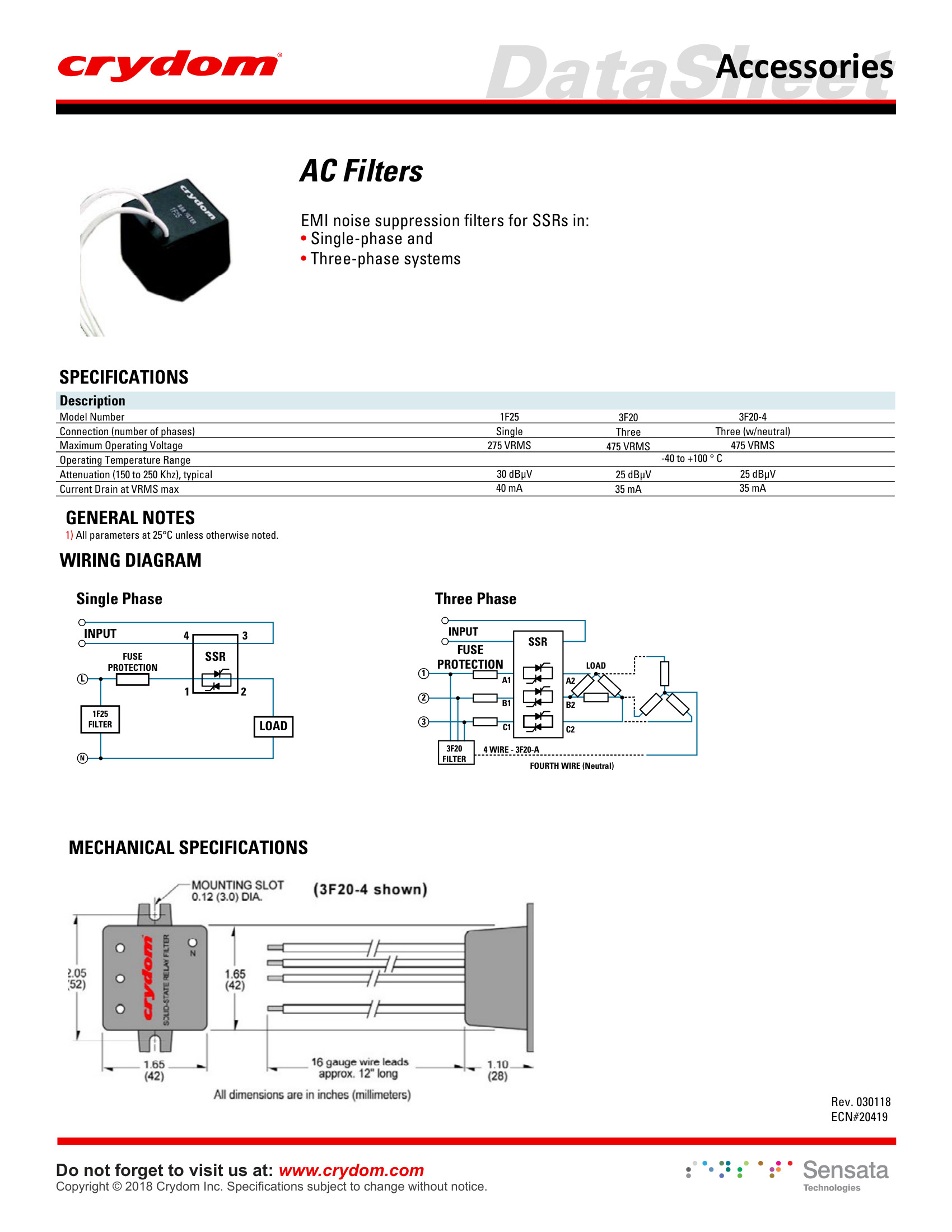

Crydom 3F20-4 is an EMI noise suppression AC filter accessory for solid state relays in three-phase systems with neutral (4 wire). Source: Crydom AC Filters datasheet (Rev. 030118). Values at 25°C unless noted.

Parameter	Value
Product type	EMI noise suppression filter (accessory)
Connection	Three phase with neutral
Maximum operating voltage	475 Vrms
Attenuation (150-250 kHz), typical	25 dBµV
Current drain at maximum voltage	35 mA
Operating temperature	-40 to 100°C
