25CPV120 Description

Crydom 25CPV120 is a solid state relay. Typical uses include temperature control of heaters, packaging and plastics machinery, and general industrial load switching.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the 25CPV120, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Crydom 25CPV120 is used for proportional power control of resistive heaters in ovens, furnaces, plastic processing and other process heating applications.

Key Specifications

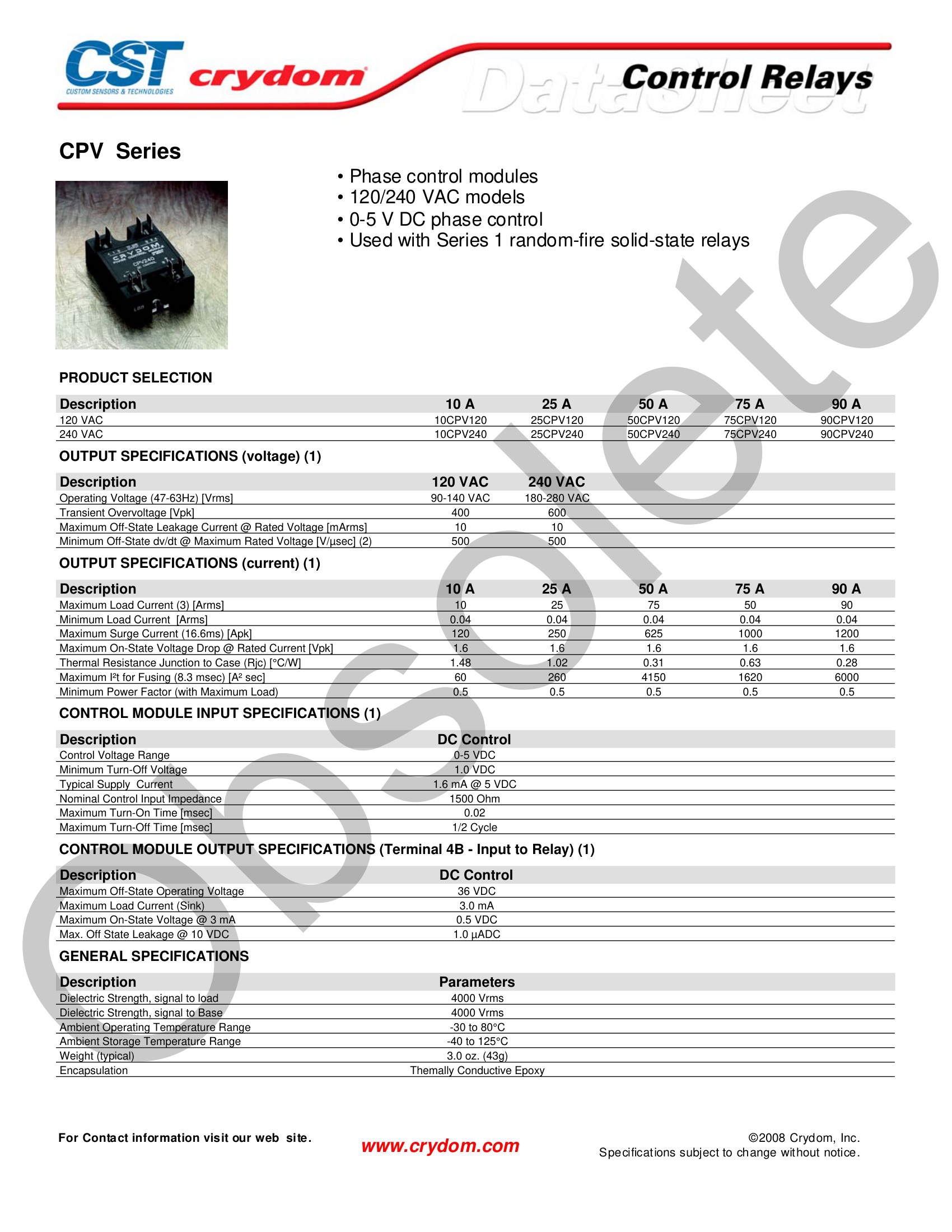

Crydom 25CPV120 is a CPV Series phase control module with 25 A output (for use with Series 1 random-fire SSRs), 120 VAC, 0-5 VDC phase control input. The datasheet marks this series obsolete. Source: Crydom CPV Series datasheet. Values at 25°C unless noted.

Parameter	Value
Output
Operating voltage (47-63 Hz)	90-140 VAC
Maximum load current	25 Arms
Minimum load current	0.04 Arms
Transient overvoltage	400 Vpk
Maximum surge current (16.6 ms)	250 Apk
Maximum on-state voltage drop @ rated current	1.6 Vpk
Thermal resistance junction to case (Rjc)	1.02 °C/W
Maximum I²t for fusing (8.3 ms)	260 A²s
Maximum off-state leakage @ rated voltage	10 mArms
Minimum off-state dv/dt	500 V/µs
Control module input
Control voltage range	0-5 VDC
Minimum turn-off voltage	1.0 VDC
Typical supply current	1.6 mA @ 5 VDC
Nominal control input impedance	1500 Ohm
General
Dielectric strength, signal to load / signal to base	4000 Vrms
Ambient operating temperature	-30 to 80°C
