1RHP2520D32 Crydom - Solid State Relay

1RHP2520D32 Description

Crydom 1RHP2520D32 is a power semiconductor module. Parts like this are found in drives, power converters and other industrial control systems.

Request a quote for the 1RHP2520D32 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Crydom 1RHP2520D32 is used for switching AC loads in industrial heating and temperature control (ovens, furnaces, plastic molding and extrusion machines), packaging and food processing equipment, lighting control, HVAC systems and industrial automation.

Key Specifications

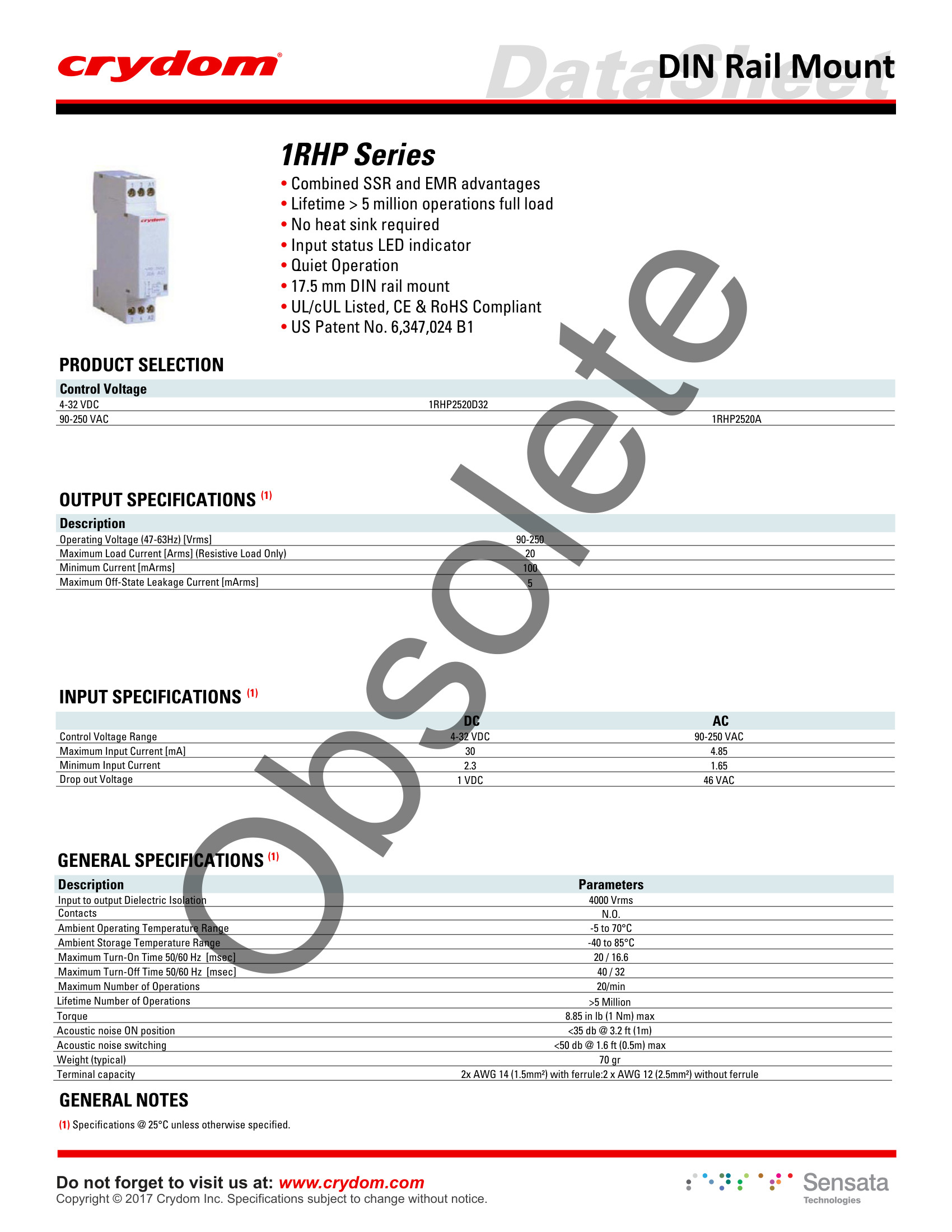

Crydom 1RHP2520D32 is a single-phase RHP hybrid relay (SSR + EMR, 17.5 mm DIN rail), 20 A resistive @ 90-250 VAC, DC control 4-32 VDC, N.O. contacts, LED input indicator, no heat sink required. The datasheet marks this series obsolete. Source: Crydom 1RHP Series datasheet. Values at 25°C unless noted.

Parameter	Value
Output
Operating voltage (47-63 Hz)	90-250 Vrms
Maximum load current (resistive only)	20 Arms
Minimum current	100 mArms
Maximum off-state leakage	5 mArms
Contacts	N.O.
Input
Control voltage range	4-32 VDC
Input current (min-max)	2.3-30 mA
Drop-out voltage	1 VDC
General
Input to output dielectric isolation	4000 Vrms
Maximum turn-on / turn-off time (50/60 Hz)	20 / 16.6 ms, 40 / 32 ms
Maximum operations	20 per minute
Lifetime	More than 5 million operations at full load
Ambient operating temperature	-5 to 70°C
Weight (typical)	70 g

Technical document (PDF)  |  Request a quote for 1RHP2520D32 (reply within 24 hours)
